| Code: | LG49LB-09 |  |
| Name: | BACKLIGHT BARS FOR LG 47 |
 |
● Used to repair or replace the backlight bars for the LG 49-inch LED/LCD TV.

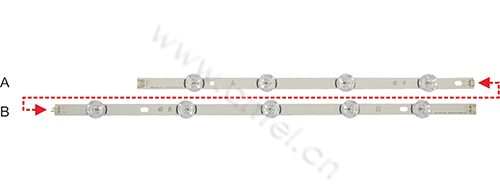

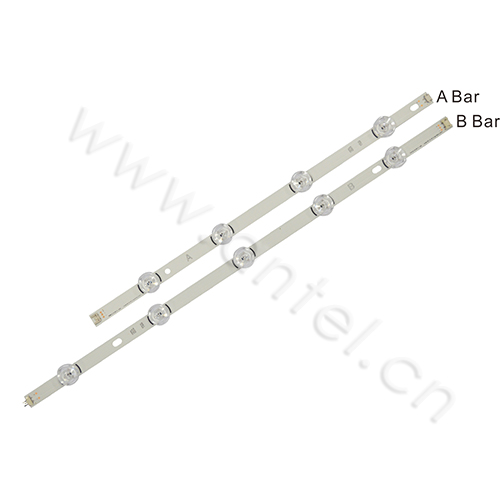

● Each set of 49-inch LG TV uses 5 pairs (one pair= one A bar and one B bar) of bars.

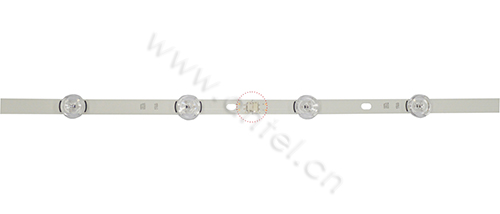

● Each A bar with 4 Φ22.5 concave lens LEDs and each B bar with 5 Φ22.5 concave lens LEDs.
● The power of each LED is 2W and the voltage of each LED is 6V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | LG49LB-09 |
| Input Voltage(V) | 59.4~61.2 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | A=458*15*1/B=567*15*1 |
| Board Material | Aluminum |

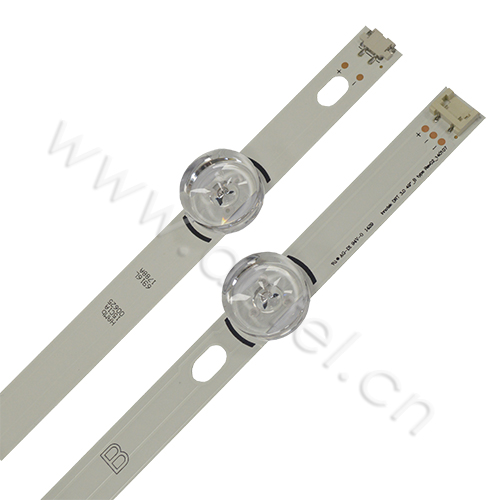

| Connector | Same as original connector |
