| Code: | LG32LN-07 |  |
| Name: | BACKLIGHT BARS FOR LG 32 |
 |
● Used to repair or replace the backlight bars for the LG 32-inch LED/LCD TV.

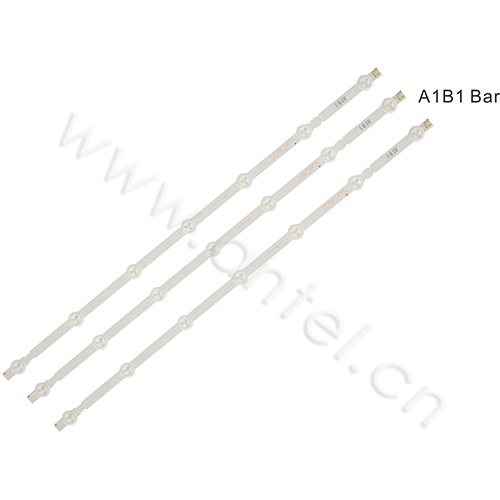

● Each set of 32-inch LG TV uses 3 A1B1 bars.

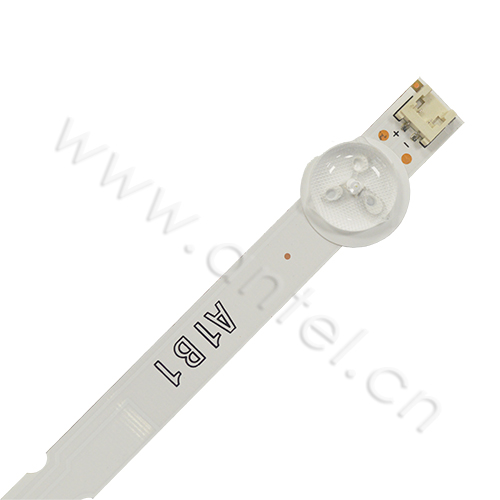

● Each A1B1 bar with 7 Φ16 convex lens LEDs.
● The power of each LED is 1W and the voltage of each LED is 3V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | LG32LN-07 |
| Input Voltage(V) | 22.4~23.8 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | 630*12*1mm |
| Board Material | Double-sided FR4 |
| Connector | Same as original connector |
