| Code: | LG50LN-010 |  |
| Name: | BACKLIGHT BARS FOR LG 50 |
 |
● Used to repair or replace the backlight bars for the LG 50-inch LED/LCD TV.

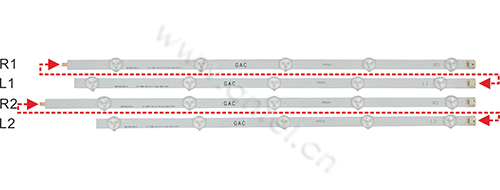

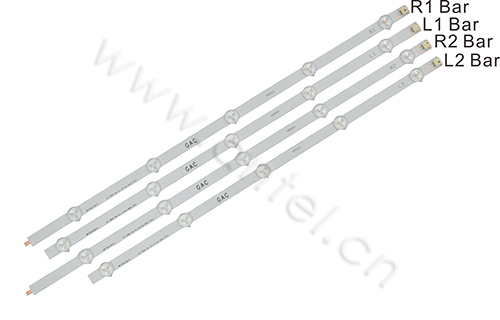

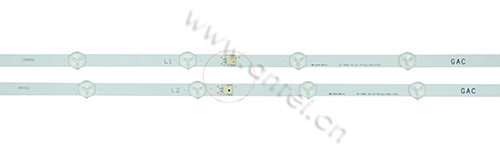

● Each set of 50-inch LG TV uses 3 pairs of L1 and R1 bars (one pair=one L1 and one R1 bars) and 3 pairs of L2 and R2 bars (one pair=one L2 and R2 bars).

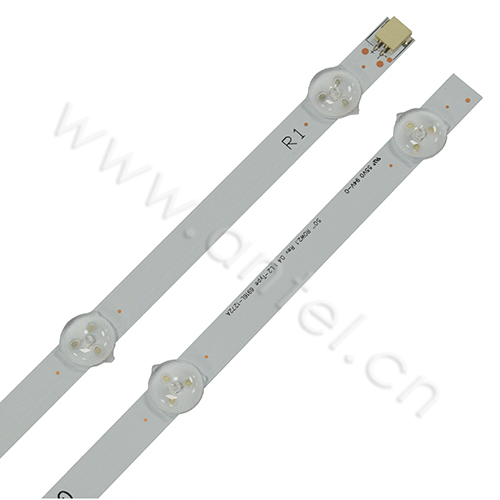

● Each L1/R1/L2/R2 bars with 5 Φ16 convex lens LEDs.
● The power of each LED is 1W and the voltage of each LED is 3V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | LG50LN-010 |
| Input Voltage(V) | 32.0~34.0 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | L1=495*12*1/R1=510*12*1/L2=468*12*1/R2=530*12*1 |
| Board Material | Aluminum |
| Connector | Same as original connector |
