| Code: | SA32LN-09V |  |
| Name: | BACKLIGHT BARS FOR SAMSUNG 32 |
 |
● Used to repair or replace the backlight bars for the SAMSUNG 32-inch LED/LCD TV.

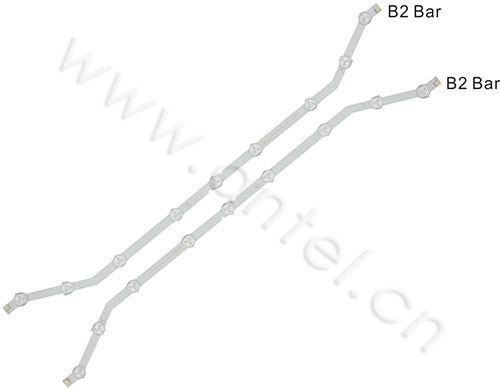

● Each set of 32-inch SAMSUNG TV uses 2 B2 bars.

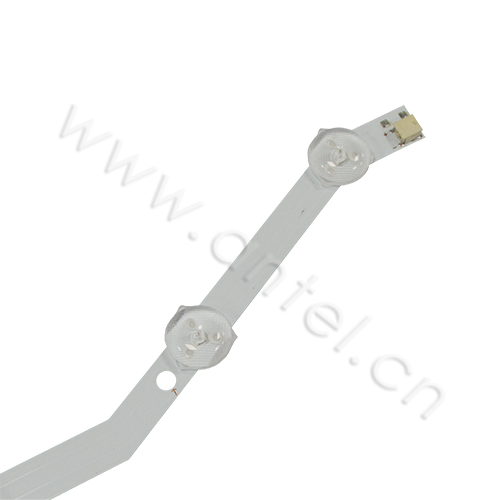

● Each B2 bar with 9 Φ16 convex lens LEDs.
● The power of each LED is 1W and the voltage of each LED is 3V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | SA32LN-09V |
| Input Voltage(V) | 28.8~30.6 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | 586*11*1 |
| Board Material | Aluminum |
| Connector | Same as original connector |
