| Code: | SA40LN-013 |  |
| Name: | BACKLIGHT BARS FOR SAMSUNG 40 |
 |
● Used to repair or replace the backlight bars for the SAMSUNG 40-inch LED/LCD TV.

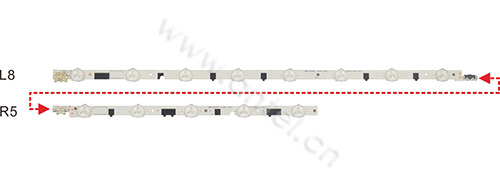

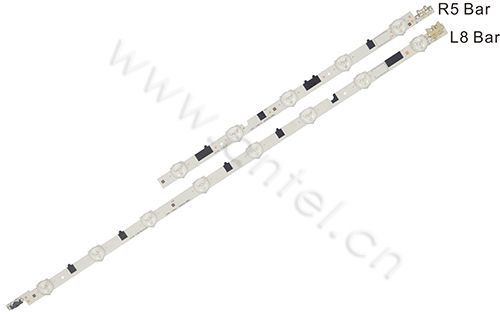

● Each set of 40-inch SAMSUNG TV uses 7 pairs (one pair= one L8 bar and one R5 bar) of bars.

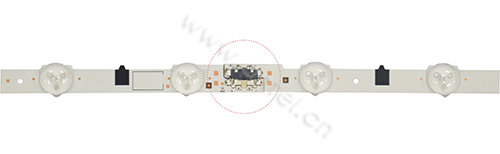

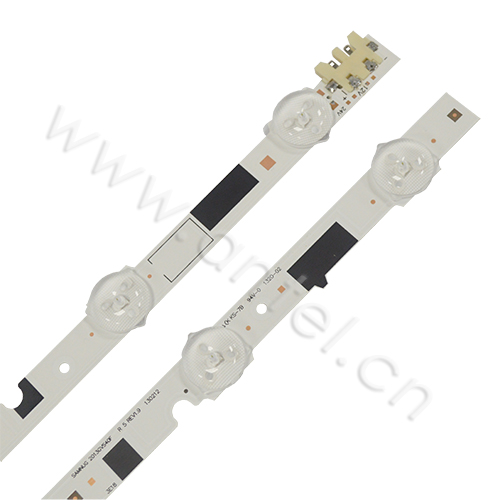

● Each L8 bar with 8 Φ16 convex lens LEDs and each R5 bar with 5 Φ16 convex lens LEDs.
● The power of each LED is 1W and the voltage of each LED is 3V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | SA40LN-013 |
| Input Voltage(V) | 41.6~44.2 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | L8=527*14*1/R5=322*14*1 |
| Board Material | Double-sided FR4 |
| Connector | Same as original connector |
