| Code: | SVT320AE9-08 |  |
| Name: | BACKLIGHT BARS FOR TOSHIBA 32 |
 |
● Used to repair or replace the backlight bars for the TOSHIBA 32-inch LED/LCD TV.

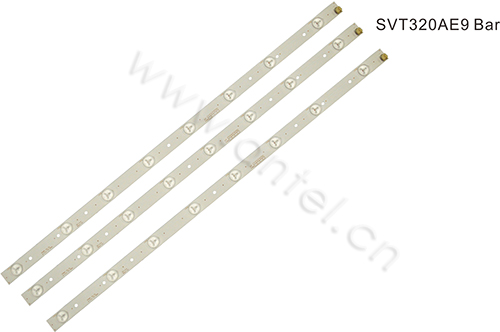

● Each set of 32-inch TOSHIBA TV uses 3 SVT320AE9 bars.

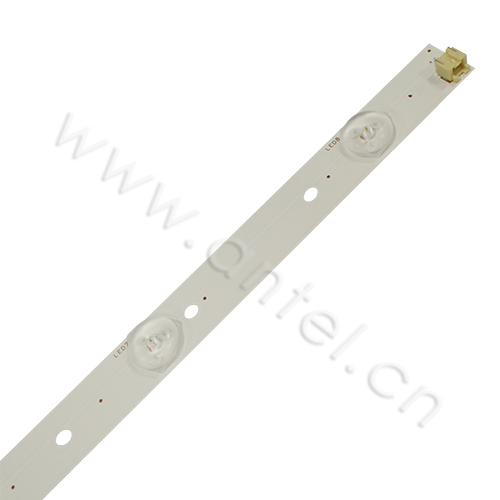

● Each SVT320AE9 bar with 8 Φ16 convex lens LEDs.
● The power of each LED is 1W and the voltage of each LED is 3V.
High transmittance, low energy consumption and low light attenuation, long lifetime, and condenser design.
| Specifications | |
| Model | SVT320AE9-08 |
| Input Voltage(V) | 25.6~27.2 |
| Input Current(mA) | 300 |
| Minimum Lifetime(Hrs) | Ts=80℃ 30,000 |
| Luminous Flux(lm) | 170 |
| Color Temperature(K) | 7,000~13,000 |
| LED Type | SMD 3030 LED Chip |
| PCB Dimensions(mm) | 623*20*1 |
| Board Material | Aluminum |
| Connector | Same as original connector |
