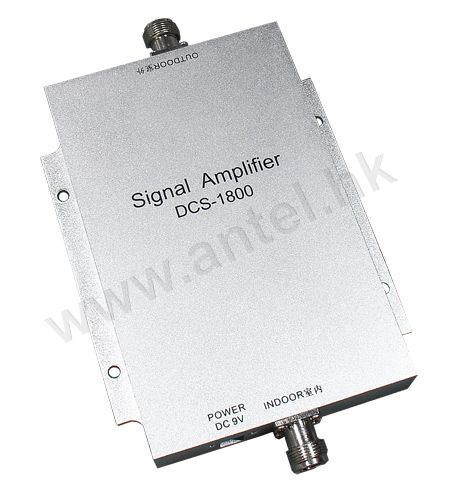

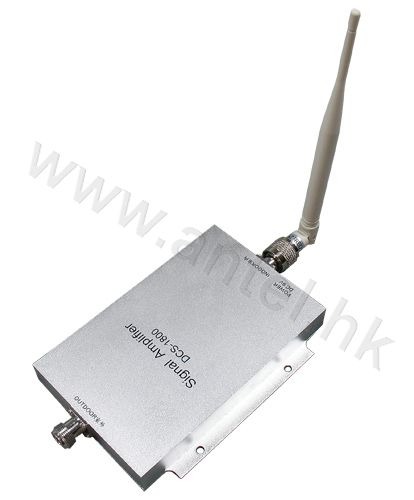

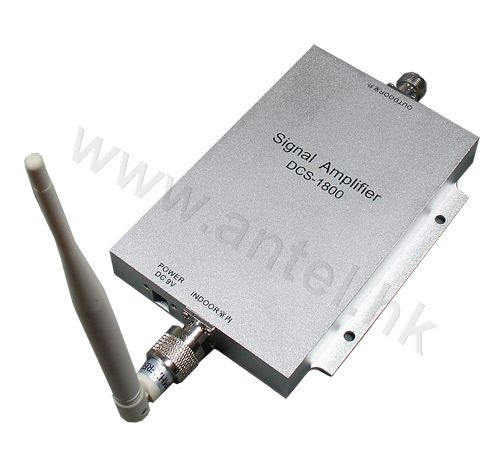

| Code: | DCS-1800 |  |
| Name: | signal amplifier 18000MHz (300m2), alu cabinet 195*119*22mm; |
 |
Features:
| 1) High gain, easy installation and operation |
| 2) Full-duplex, single-port design, build-in power supply |
| 3) Use ALC technology, adjust extent automatically |
| 4) LED light working & signal condition indicators |
| 5) Big linear power, control intermodulation & scatteration stably |
| 6) Dependability stand by GB6993-86 standard |
| 7) Compatibility of electromagnetism according wity ETS300 609-4 |
| 8) CE and RoHs approved |
Specifications:
| Frequency | Up Link | Down Link |
| 1710~1785MHz | 1805~1880MHz | |
| Gain | 60dB | 65dB |
| Max. Output Power | +20dBm / Total power | +20dBm / Total power |
| Impedance | 50Ω | |
| Seclusion | ＞70dB | |
| Plainness | ≤3dB | |
| Noise Factor | ≤3dB | |
| VSWR | ≤1.4 | |
| Equipment Time Delay | 1us | |
| Spurious Emission | ≤-39dBm | |
| Compact Design | Indoor Use | |
| Power Supply | AC/DC Adapter 9V DC | |
| Diemension | 530*110*41mm | |
| Cover Area | 200~300m² | |
