| Code: | PD-4C |  |

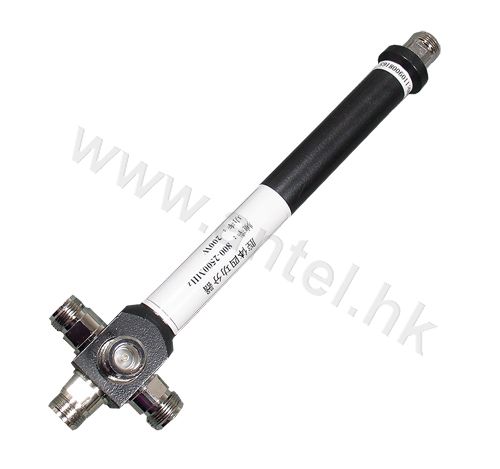

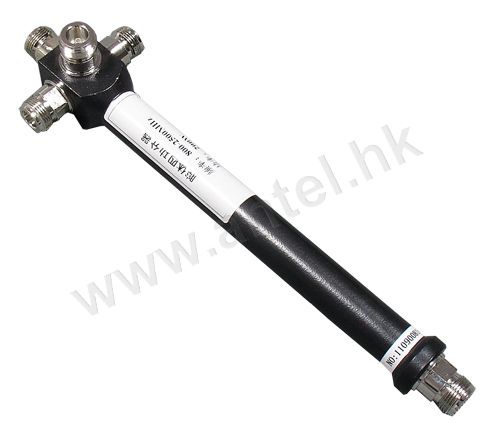

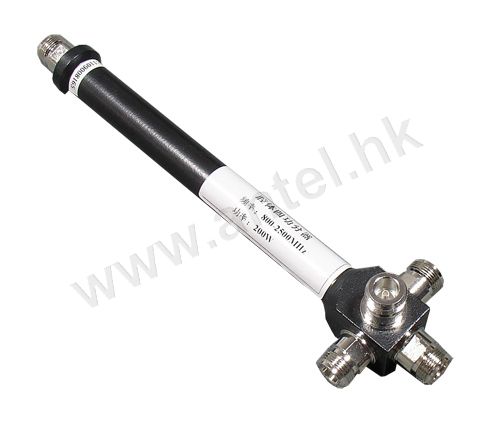

| Name: | Splitter 1 to 4, alu case, N female plug, 235*60*42.5mm; 800~2500Hz, power=200W, loss≤6.3dB, 50Ω |
 |
Specifications:
| Frequency | 800~2500MHz |
| Bandwidth | 1700MHz |
| Insertion Loss | ≤6.3dB |
| Passband Ripple | ≤0.3dB |
| Voltage Standing Wave Ratio | ≤1.2 |
| Input Impedance | 50Ω |
| Power Capacity | 200W |
| Operating Temperature | -30℃ ~ +70℃ |
| Dimensions | 235*60*25mm |
| Weight | 45g |
| Connection Type | N-Female |
