| Code: | OL-102SC-1310/1550-20/80 |  |

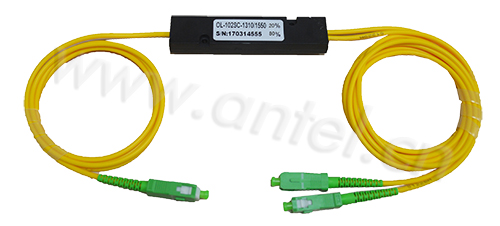

| Name: | Optic coupler, 1*2, wavelength: 1310/1550nm, splitting ratio: 20%/80% |
 |
| 1*2 single mode coupler splitter | ||
| Model | OL-102SC-1310/1550-20/80 | |
| Splitting ratio (%) | 20/ 80 | |
| Input fiber length (m) | 1 | |
| Onput fiber length (m) | 1 | |
| Package dimension (mm) | 90*20*8 | |
| Glass fiber casing (mm) | Φ3 | |
| Connector type | SC-P | |
| Polarization dependent loss (dB) | ≤0.2 | |
| Directivity (dB) | ≥55 | |
| Return loss (dB) | ≥55 | |
| Operating temperature (℃) | -40~85 | |
| Storage temperature (℃) | -40~85 | |
| Optic coupler test report | |||||
| Wavelength (nm) | Required ratio (%) | Actual ratio (%) | Insertion loss (dB) | Excess loss (dB) | |
| 1310 | PORT1 | 20 | 19.84 | 7.15 | 0.13 |
| PORT2 | 80 | 80.16 | 1.09 | ||
| 1550 | PORT1 | 20 | 20.41 | 7.01 | 0.11 |
| PORT2 | 80 | 79.59 | 1.10 | ||
