Code: | OL-102SC-1310/1550-30/70 | |

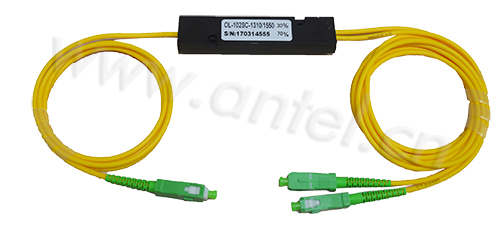

Name: | Optic coupler, 1*2, wavelength: 1310/1550nm, splitting ratio: 30%/70% |
1*2 single mode coupler splitter | ||
Model | OL-102SC-1310/1550-30/70 | |
Splitting ratio (%) | 30 / 70 | |
Input fiber length (m) | 1 | |
Onput fiber length (m) | 1 | |
Package dimension (mm) | 90*20*8 | |
Glass fiber casing (mm) | Φ3 | |
Connector type | SC-P | |
Polarization dependent loss (dB) | ≤0.2 | |
Directivity (dB) | ≥55 | |
Return loss (dB) | ≥55 | |
Operating temperature (℃) | -40~85 | |
Storage temperature (℃) | -40~85 |
Optic coupler test report | |||||
Wavelength (nm) | Required ratio (%) | Actual ratio (%) | Insertion loss (dB) | Excess loss (dB) | |
1310 | PORT1 | 30 | 30.43 | 5.31 | 0.14 |
PORT2 | 70 | 69.57 | 1.72 | ||
1550 | PORT1 | 30 | 29.75 | 5.32 | 0.05 |
PORT2 | 70 | 70.25 | 1.58 |
