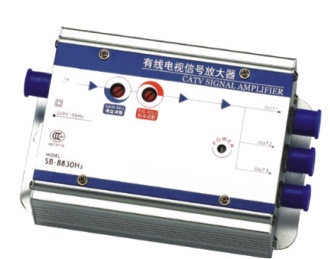

SB-8820H3 Household CATV signal amplifier
Features:
● Adopting imported high frequency component
push-pull amplifier design
● Applying double-sided gilt-plated through hole electric
board and automatic surface mounted technology
● Work frequency range:45~862MHz,Nominal gain 30dB
● Max output voltage 109dB μV
● 75Ω metric system F set M10-0.75mm,one input three
outputs, gain、slope adjust
● Dimension:135x78x38mm
