| Code: | DVR-6008 |  |

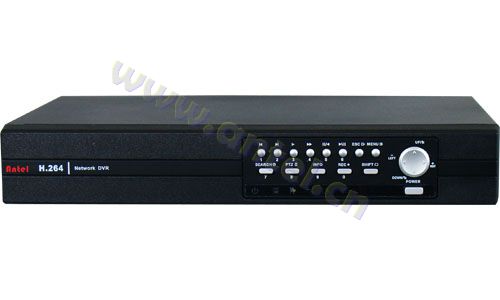

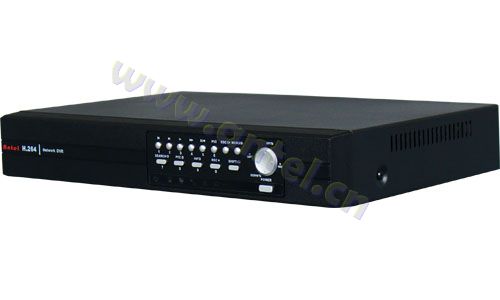

| Name: | HD-NETWORK DVR,H.264,VGA |
 |
Features:
| * H.264 video compression format |
| * Supports 8CH real time recording/playback simultaneously |
| * Supports VGA output |
| * Simple GUI menu operation with mouse right click function menu |
| * Supports iPhone 5/iPhone 4/iPad 2,BlackBerry,Android,Symbian and Windows mobile software |
| * Supports Windows XP,Vista,Windows 7 and OS X 10.6/10.7 system |
| * Supports Internet Explorer,Google Chrome,Mozilla Firefox and Safari internet browser |
| * Multi-language menus option up to 28 kinds of language |
| * Supports TCP/IP,DHCP,DDNS,PPPOE,UPNP,NTP,SMTP,FTP,RTSP,ARSP etc… |
| * Supports 2 SATA HDD up to 2TB,2*USB 2.0 ports for mouse &backup |
| * Perfect circuit protection,unique triple watchdog function |
| * iCloud software,free DDNS and free network setting |
Specifications:
| System | Model | DVR-6008 |
| Video Compression Format | H.264 | |
| Main Processor | High performance embedded microprocessor Hi3515 | |
| Video | Video System | PAL/NTSC |
| Operation System | Embedded Linux | |

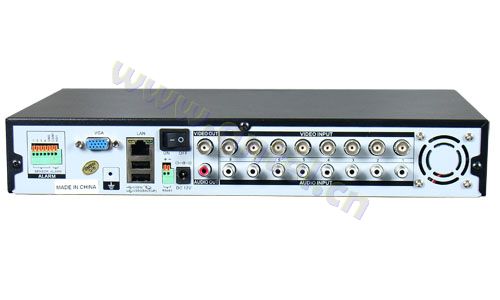

| Video Input | 8CH BNC | |
| Video Output | 1*BNC & 1*VGA | |
| Audio | Audio Input | 8*RCA |
| Audio Output | 1*RCA | |
| Recording | Real Time Recording | 2CH D1+6CH CIF Real Time |
| Resolution | PAL-CIF(352*288)/D1(704*576) | |
| NTSC-CIF(352*240)/D1(704*480) | ||
| Frame Rate-D1 | NTSC 30fps/PAL 25fps | |
| Frame Rate-CIF | NTSC 30fps/PAL 25fps | |
| Recording Mode | Manual/Alarm/Video Detection/Continuous | |
| Playback | Playback Channel | 8CH CIF Real Time Playback |
| Search Mode | Time/Date/Alarm/Motion Detection/Exact Search | |
| Playback Mode | Time/Date/Alarm/Motion Detection/Exact Search | |
| Playback Software | General H.264 Player V1.7.0.0.R | |
| Alarm | Alarm Input | 4CH |
| Alarm Output | 1CH | |
| Storage | HDD Interface | 2*SATA fixed HDD up to 2TB |
| Backup | USB Port | 2*USB 2.0 port (back panel) |
| Backup Mode | Network download/USB movable HDD/SATA HDD | |
| PTZ | PTZ | 1*RS485 |
| Network | Interface | RJ45 port /10M/100M/1,000Mbps Ethernet |
| Mobile Phone Support | iPhone/iPad,Androi,BlakBerry,Symbian,Windows Mobile Pro | |
| Computer Sysem Support | Windows 2000/XP/Vista/Widows 7/Mac OS 10.6/10.7 | |
| Others | Language | 28 Kinds of Language |
| Dimension | 325*250*60mm | |
| Weight | 1.4kgs(without HDD) | |
| IR Remote Control | YES | |
| Power Supply | DC12V 4A |
