| Code: | AVR-408 |  |

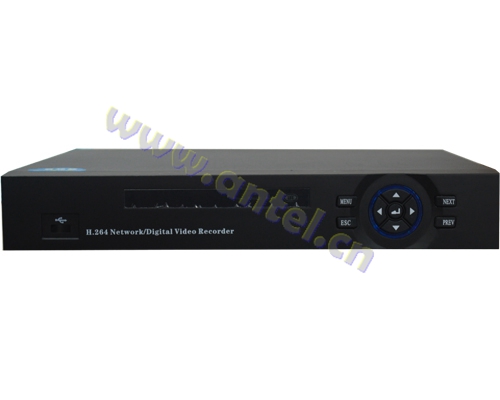

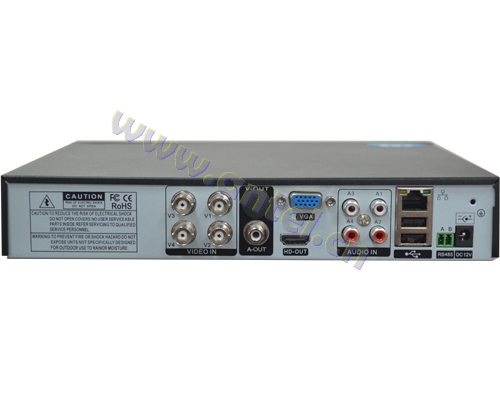

| Name: | AHD DVR H.264+HDMI+VGA 4CH |
 |
Specifications:
| System | Model | AVR-408 |
| Video Compression Format | H.264 | |
| Main Processor | High performance embedded microprocessor Hi3520D | |
| Video | Video System | PAL/NTSC |
| Operation System | Embedded Linux | |
| Video Input | 4CH BNC | |
| Video Output | 1*HDMI & 1*VGA | |
| Multi-modal Input | Simulation：4* AHD-N | |
| Hybrid：2*AHD-M（Simulation）+2*720P（Network) | ||
| Network：8*1080P；8*960P;4*720M | ||
| Audio | Audio Input | 4*RCA |
| Audio Output | 1*RCA | |
| Recording | Real Time Recording | 4CH*1080N Real Time |
| Resolution | PAL-1080N(1280*1024) | |
| NTSC-1080N(1280*1024) | ||
| Frame Rate-1080N | NTSC 25fps/PAL 25fps | |
| Frame Rate-CIF | NTSC 12fps/PAL 12fps | |
| Recording Mode | Manual/Alarm/Video Detection/Continuous | |
| Playback | Playback Channel | 4CH 1080N Real Time Playback |
| Search Mode | Time/Date/Alarm/Motion Detection/Exact Search | |
| Playback Mode | Time/Date/Alarm/Motion Detection/Exact Search | |
| Playback Software | General H.264 Player V1.7.0.0.R | |
| Storage | HDD Interface | 1*SATA fixed HDD up to 6TB |
| Backup | USB Port | 2*USB 2.0 port (back panel) |
| Backup Mode | Network download/USB movable HDD/SATA HDD | |
| PTZ | PTZ | 1*RS485 |
| Network | Interface | RJ45 port /10M/100Mbps Ethernet |
| Mobile Phone Support | iPhone/iPad,Androi | |
| Computer System Support | Windows 2000/XP/Vista/Widows 7/Mac OS 10.6/10.7 | |
| Others | Language | 28 Kinds of Language |
| Dimensions | 256*220*42mm | |
| Weight | 0.75kgs (without HDD) | |
| IR Remote Control | Yes | |
| Power Supply | DC12V 2A |
