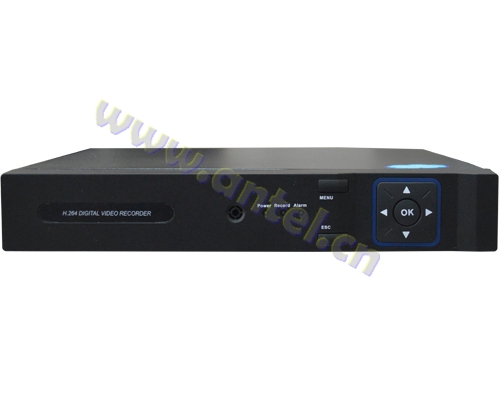

| Code: | DVR-5004E |  |
| Name: | 4CH DVR H.264+VGA, Remote view, iCloud |
 |
Specifications:
| Model | DVR-5004E | |
| System | Main Processor | High performance embedded microprocessor Hi3515 |
| Operating System | Embedded LINUX | |
| System Resources | Pentaplex function:live,recording,playback,backup & remote access | |
| User Interface | GUI,on-screen menu tips | |
| Video | Video System | PAL/NTSC |
| Video Compression | H.264 | |
| Video Recording | D1:PAL 25f/s,NTSC 30f/s | |
| Encode capacity | 100/120fps(D1) | |
| Motion Detection | Zones:396(22*18)detection zones,Sensitivity:1~6(6 is highest) | |
| Motion Detection | Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP | |
| Audio | Audio Compression | G711A |
| Bidrectional Talk | Support | |
| Record & Playback | Recording Mode | Manual/Alarm/Video Detection/Continuous |
| Playback | 1~4Channels playback simultaneously | |
| Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | |
| Storage & Backup | Space Occupation | Audio 28.8MB/H ;Video 25~450 MB/H |
| Record Storage | Local Hard disk and Network | |
| Backup Mode | Network download/Flash stick/movable HDD/SATA HDD | |

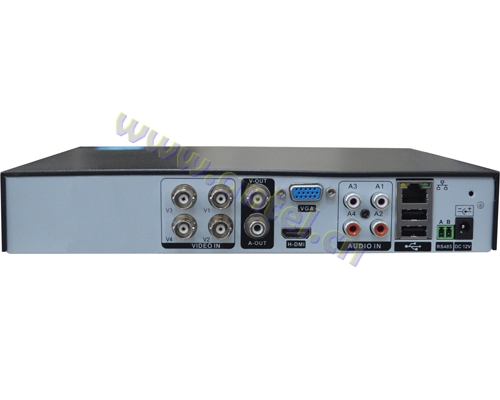

| Interface | Video Input | 4CH |
| Video Output | 1Channel TV output BNC; 1 VGA output; 1 HDMI output | |
| Audio Input | 4*RCA | |
| Audio Output | 1*RCA | |
| Net Interface | RJ45(10M/100M) | |
| PTZ Control | 1*RS485 | |
| USB Interface | 2*USB2.0 | |
| Hard Disk | 1 SATA ports(Max 2048G) | |
| Environmental | Power Supply | 12V/2A |
| Power Consumption | <10W(not include Hard disk) | |
| Working Temperature | 0℃~+55℃ | |
| Working Humidity | 10%~90% | |
| Dimension(W*L*H) | 254*215*42mm | |
| Weight | 0.86KG |
