| Code: | CT-100 |  |

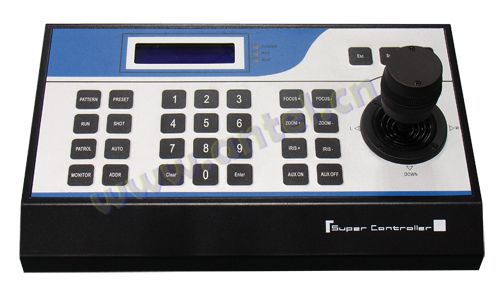

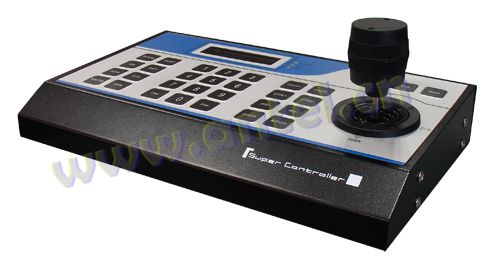

| Name: | 3D universal controller for speed dome camera |
 |
Features:
| ● RS485 signal input with photoelectric isolation |
| ● RS485 control distance can reach to 1200m |
| ● RS485 bus can set different protocol and baud rate address |
| ● Can remote control the pan tilt auto line scan |
| ● Receiver built-in rectifier switch circuit, using 12V supply power |
| ● LED screen show various code |
| ● Single key query parameter settings |
| ● Controller can control the camera speed, set the size and scope of the system |
Specifications:
| Model | CT-100 |
| Power supply | DC12V ±10%/50Hz |
| Operating Temperature | -10 ~ 55℃ |
| Humidity | ≤90%RH |
| Communications | RS485 |
| Baud Rate of Communication | 1200、2400、4800、9600、19200(bps) |

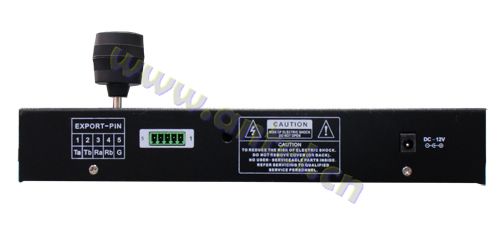

| Interface mode | 5pin |
| Screen | LCD display |
| Dimension | 300(L)×180(W)×90(H)mm |
