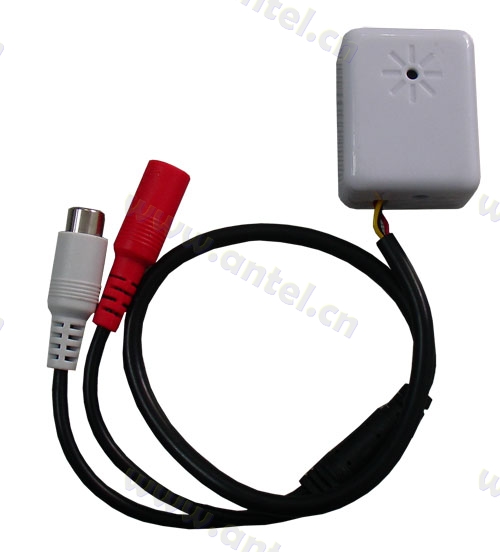

| Code: | LY-502C |  |
| Name: | Sound pickup for security,DC9-14V, white case Φ31*39*18mm |
 |
 FEATURES |
| 1.Low-noise processing chips |
| 2.Special explosion-proof metal |
| 3.Power polarity protection circuit |
| 4.DC+RCA |
| SPECIFICATIONS |
| 1.Area:20~120m² (adjustable) |
| 2.Audio transmission distance:100m |
| 3.Sensitivity:-46dB±3dB |
| 4.Impedance:600Ω |
| 5.Signal amplitude:0~6Vp-p |
| 6.Frequency range:100Hz~15KHz |
| 7.Power supply:DC6V~12V 20mA |
| 8.Wire length:380mm |
| 9.Dimension:39*31*18mm |
