| Code: | LY-901LS |  |

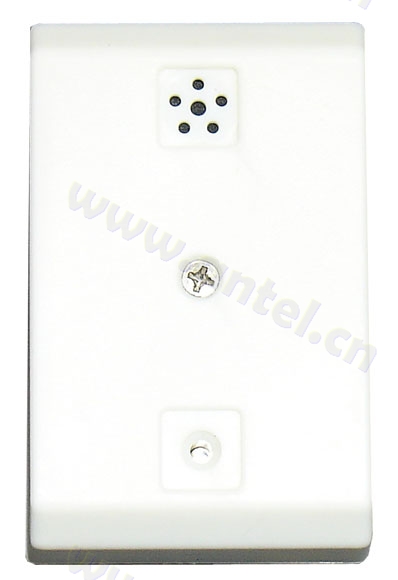

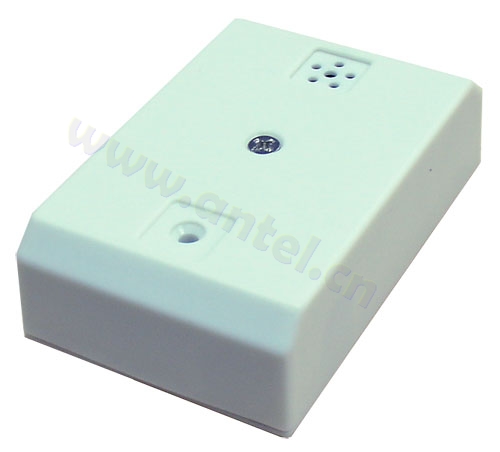

| Name: | Sound pickup for security,DC9-12V, white case Φ74*47*21mm |
 |
 FEATURES |

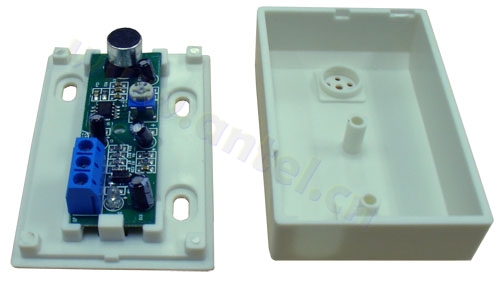

| 1.NE5532 Preamplifier |
| 2.AA-type design to enlarge |
| 3.Independent acoustic chamber, the sound clear and bright |
| SPECIFICATIONS |
| 1.Area:10~80m² (adjustable) |
| 2.Audio transmission distance:1000m |
| 3.Sensitivity:-45dB±3dB |
| 4.Impedance:600Ω |
| 5.Signal amplitude:0~6Vp-p |
| 6.Frequency range:100Hz~15KHz |
| 7.Power supply:DC9V~12V 20mA |
| 8.Dimension:74/47*21mm |
