| Code: | UTP-202K |  |

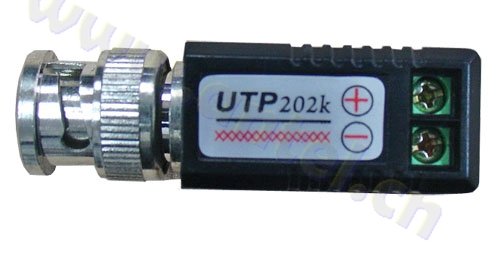

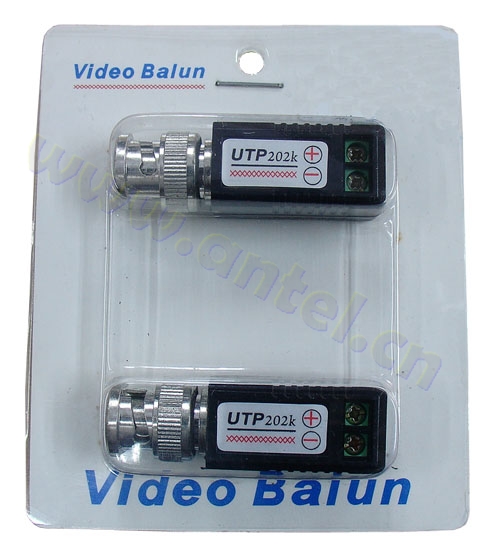

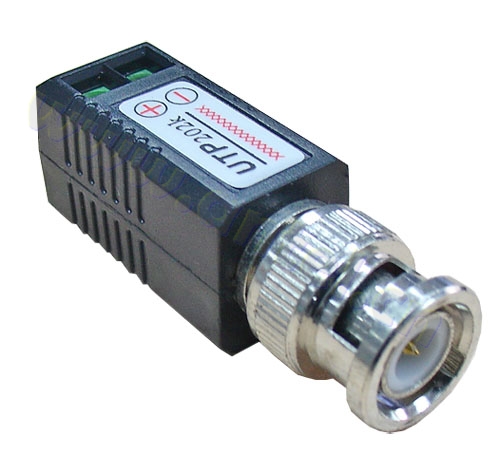

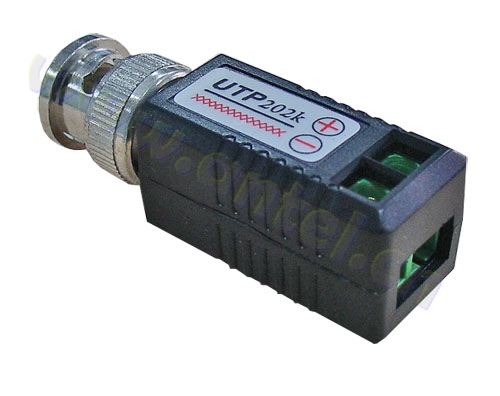

| Name: | Passive UTP transceiver, BNC & two wire |
 |
 Functions |
| 1) Video transmission via CAT5/6 cable |
| 2) Impedance BNC 75Ω, RJ45 terminal 100Ω |
| 3) One pair transmission distance for CCTV video signal up to 500m |
| 4) Excellent anti-interference & transient protection |
| 5) BNC connection to DVR/camera |
| 6) No power supply required |
| 7) Dimension:30*14*16mm |
Technical Specifications Features
• Full-motion CCTV video at distances up to 500m When used with any passive transceiver,Up to 1300m with any active UTP video receiver
• "Press-Fit" terminal block
• No power required
• 60dB crosstalk and noise immunity
• Compact size and easy installation

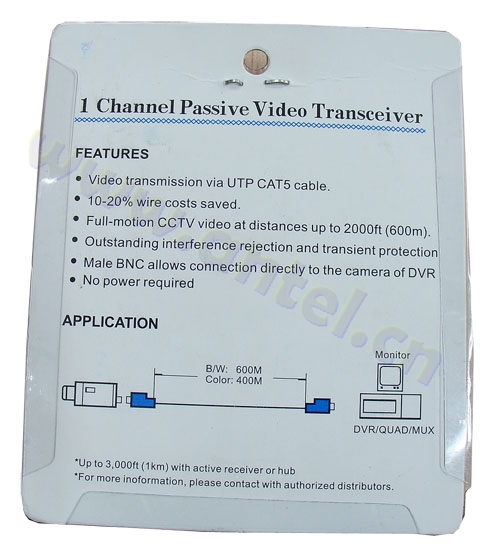

Application Diagram
