| Code: | GFS-7565 |  |
| Name: | heat & electric insulator tube for home appliance |
 |

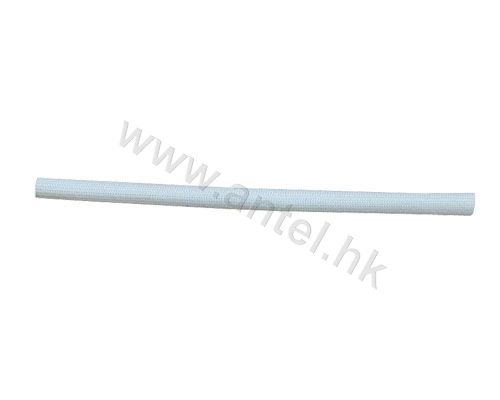

GFS-7565, Silicone Fiber Glass Tube;
White Tube,OD/ID=Φ7.5/6.5mm,tube thickness=0.38mm; outer=fibre glass,inner=rubber; withstand voltage=1.2KV, heat-resistant=200℃~250℃; fireproof VW-1; 100m/roll
Introduction of Silicone Fiberglass Sleeving;
| 玻璃纤维为材经纺织成管状后经高温处理再涂以有机硅树脂烘干而成,其绝缘等级以涂的绝缘漆层厚度而分电压等级.产品具有良好遥耐热性和阻燃性,广泛用于电热,电器,电子的绝缘及保护. |
|
Silicone fiberglass sleeving, woven as sleeving by non-alkali fiberglass & coated with silicone resin in high temperature, its insulation grade varies with the thickness of insulating varnish coated. This product is with good heat resistance,fire resistance, widely used for the insulation and protection for electric heating, appliance, electronics,etc. |
| Insulation grade | ||||
| Insulation grade | heat-resistant | flammability class | UL standard voltage | Internal voltage standard |
| 1200V | -30°C---+200°C | VW-1 | average voltage 1200V | ＞1200V |
| 1500V | -30°C---+200°C | VW-1 | average voltage 1500V | ＞1500V |
| 2500V | -30°C---+200°C | VW-1 | average voltage 2500V | ＞2500V |
| Dimensions | ||||||
| Specification | 1200V | 1500V | 2500 | |||
| Inner dia/tolerence | thickness | Inner dia/tolerence | thickness | Inner dia/tolerence | thickness | |
| Φ0.8 | 0.8+0.1 | 0.25±0.03 | 0.8+0.1 | 0.25±0.03 | 0.8+0.1 | 0.27±0.03 |
| Φ1.0 | 1.0+0.1 | 0.25±0.03 | 1.5+0.1 | 0.25±0.03 | 1.0+0.1 | 0.28±0.03 |
| Φ1.5 | 1.5+0.15 | 0.25±0.03 | 1.0+0.15 | 0.25±0.03 | 1.5+0.15 | 0.30±0.03 |
| Φ2.0 | 2.0+0.2 | 0.25±0.03 | 2.0+0.2 | 0.25±0.03 | 2.0+0.2 | 0.32±0.03 |
| Φ2.5 | 2.5+0.2 | 0.25±0.04 | 2.5+0.2 | 0.25±0.04 | 2.5+0.2 | 0.32±0.03 |
| Φ3.0 | 3.0+0.25 | 0.35±0.04 | 3.0+0.25 | 0.35±0.04 | 3.0+0.25 | 0.35±0.04 |
| Φ3.5 | 3.5+0.25 | 0.38±0.04 | 3.5+0.25 | 0.38±0.04 | 3.5+0.25 | 0.40±0.04 |
| Φ4.0 | 4.0+0.3 | 0.40±0.04 | 4.0+0.3 | 0.40±0.04 | 4.0+0.3 | 0.42±0.04 |
| Φ4.5 | 4.5+0.3 | 0.42±0.05 | 4.5+0.3 | 0.42±0.05 | 4.5+0.3 | 0.44±0.05 |
| Φ5.0 | 5.0+0.35 | 0.42±0.05 | 5.0+0.35 | 0.42±0.05 | 5.0+0.35 | 0.44±0.05 |
| Φ5.5 | 5.5+0.35 | 0.42±0.06 | 5.5+0.35 | 0.42±0.06 | 5.5+0.35 | 0.44±0.06 |
| Φ6.0 | 6.0+0.4 | 0.42±0.06 | 6.0+0.4 | 0.42±0.06 | 6.0+0.4 | 0.45±0.06 |
| Φ6.5 | 6.5+0.4 | 0.42±0.06 | 6.5+0.4 | 0.42±0.06 | 6.5+0.4 | 0.45±0.06 |
| Φ7.0 | 7.0+0.4 | 0.44±0.06 | 7.0+0.4 | 0.44±0.06 | 7.0+0.4 | 0.45±0.06 |
| Φ8.0 | 8.0+0.45 | 0.50±0.08 | 8.0+0.45 | 0.50±0.08 | 8.0+0.45 | 0.50±0.08 |
| Φ9.0 | 9.0+0.45 | 0.50±0.08 | 9.0+0.45 | 0.50±0.08 | 9.0+0.45 | 0.50±0.08 |
| Φ10.0 | 10.0+0.5 | 0.50±0.10 | 10.0+0.5 | 0.50±0.10 | 10.0+0.5 | 0.50±0.10 |
| Φ12.0 | 12.0+0.8 | 0.55±0.10 | 12.0+0.8 | 0.55±0.10 | 12.0+0.8 | 0.55±0.10 |
