| Code: | ANT-340 |  |

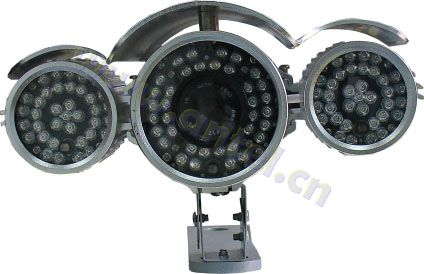

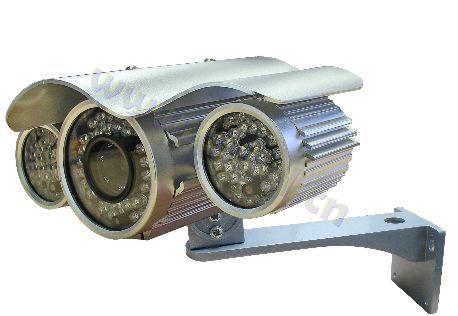

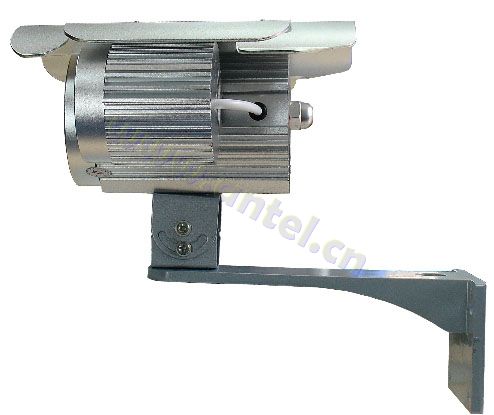

| Name: | IR Waterproof Camera |
 |
Features:
| IR Waterproof Camera |
| Sony/Sharp CCD Optional |
| 420TVL- 480TVL Optional |
| BLC/AWB Function |
| IR Led:108pcs*Φ5mm |
| IR Range:100m |
| Standard 6mm Fixed Lens |
| (4mm , 8mm Optional) |
| Water Resistant Rate:IP66 |
Specifications:
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony CCD |
| Horizontal Resolution | 420TV Line | 480TV Line |
| System | PAL:500(H)×582(V) | PAL:752(H)×582(V) |
| NTSC:510(H)×492(V) | NTSC:768(H)×492(V) | |
| Minimum Illumination | 0.1Lux (F=1.2) | |
| Lens | 6mm ( 4mm,8mm ) | |
| IR Led | Ф5mm 108pcs | |
| Electronic Shutter | PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec | |
| Lens Angle | 83°~36° | |
| BLC | On | |
| White Balance | Auto | |
| S/N Ratio | >48dB | |
| Water Proof: | IP66 | |
| Gamma | >0.45 | |
| Operation Temperature | -10℃~+60℃ (Relative Humidity 95% max.) | |
| Storage Temperature | -20℃~+50℃ (Relative Humidity 95% max.) | |
| Video Output | BNC 1.0VP-P, 75Ω | |
| Power Supply | DC12V±5% | |
| Dimensions | 202×168×85mm（L×W×H） | |
| Weight | 990g | |
