| Code: | ANT-521SV-3.6 |  |

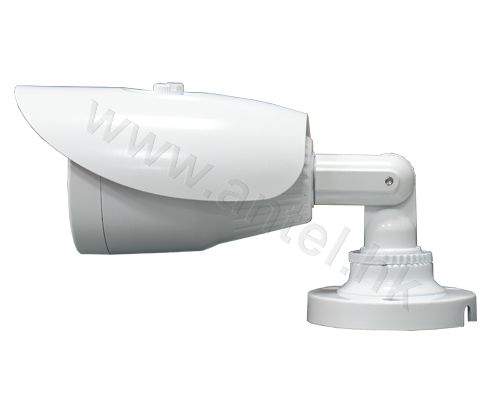

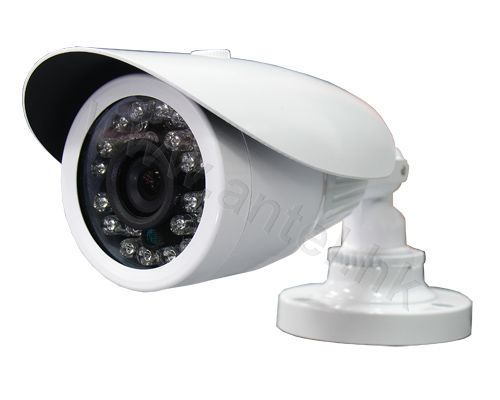

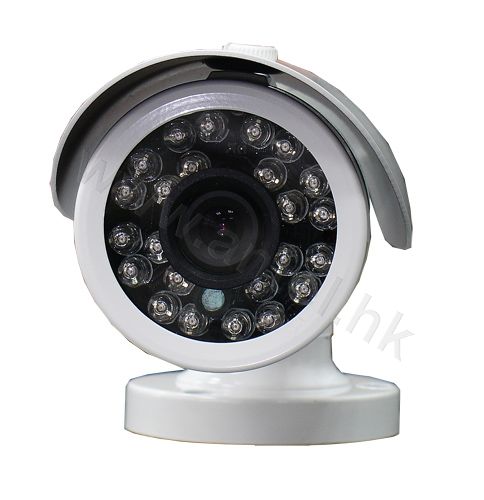

| Name: | 700TVL HR camera, aluminum case with stand |
 |
Specifications:
| Model | ANT-521SV-3.6 | |
| Image Sensor | OV139 | |
| TV System | PAL / NTSC | |
| Total Pixels | PAL:1020(H) X 596 (V)/NTSC:1020(H)X508(V) | |
| Horizontal Resolution | 700TVL | |
| Mini Illumination | 0.3 Lux IR ON | |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) | |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) | |
| Gamma Correction | 0.45 | |
| LED & IR Distance | 5mm*35pcs | |
| Sync. System | Internal | |
| Day & Night Mode | Color (Day: Color Night: Black&White) | |
| Electronic Shutter | Auto | |
| White Balance | Auto | |
| Lens | 3.6mm/4mm Lens（Optional) | |
| Protection Grade | IP65 | |
| Power | DC12V±10% | |
| Operating Temperature | -10℃ to +50℃, RH 80% Max | |
| Storage temperature | -20℃ to +60℃, RH 90% Max | |
| Dimension | 176mm(L)*66mm(W)*58(H)mm | |
| Weight | 210g | |
