| Code: | ANT-741PC |  |
| Name: | 800TVL HR camera, aluminum case with stand |
 |
Specifications:
| Model | ANT-741 | |
| Image Sensor | 1/3" CMOS | |
| TV System | PAL / NTSC | |
| Total Pixels | 1020(H) X 596 (V) | |
| Horizontal Resolution | 800TVL | |
| Mini Illumination | 0.1 Lux IR ON | |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) | |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) | |
| Gamma Correction | 0.45 | |

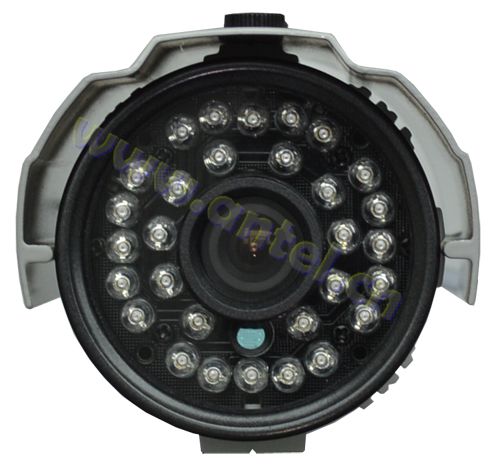

| LED & IR Distance | 30pcs*Φ5mm ( <2Lux LED ON, >5Lux LED OFF ) 30m IR Distance | |
| Sync.System | Color(Day:Color Night:Black&White) | |
| Electronic Shutter | Auto | |
| Day &Night Mode | Auto | |
| White Balance | Auto | |
| Lens | 3.6mm/6mm Lens（Optional) | |
| Operating Temperature | IP65 | |
| Power | DC12V±10% | |
| Operating Temperature | -10℃ to +50℃, RH 80% Max | |
| Storage temperature | -20℃ to +60℃, RH 90% Max | |
| Dimension | 190*75*65mm | |
| Weight | 350g | |
