| Code: | ANT-627 |  |

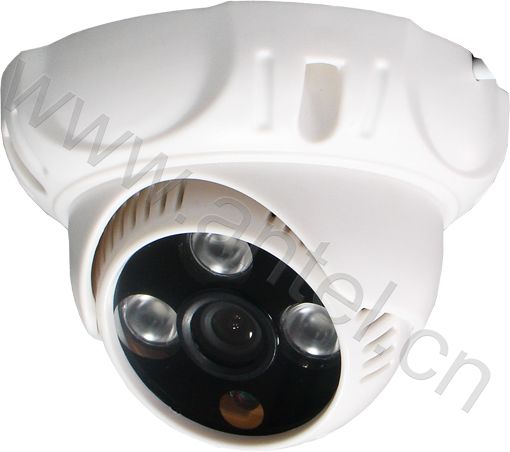

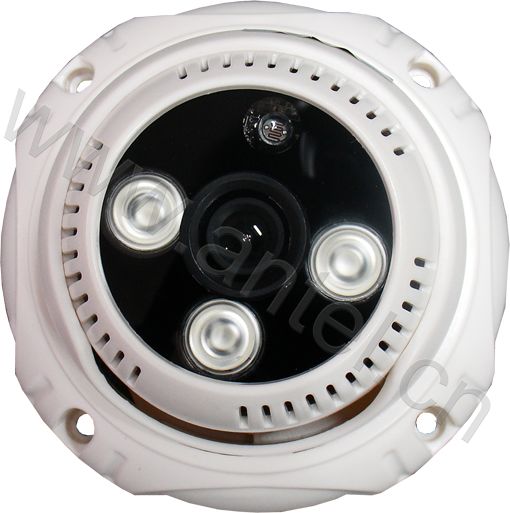

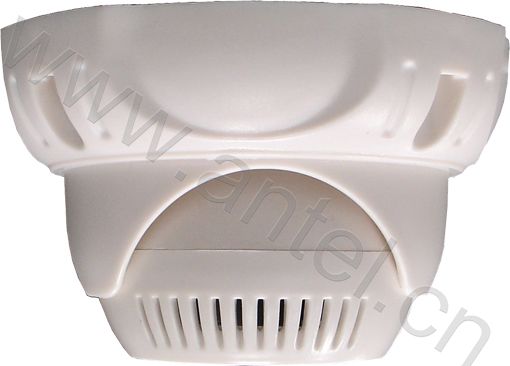

| Name: | 700TVL HR Dome Camera, High Power IR |
 |
Specification:
Model
ANT-627
Image Sensor
1/3" CMOS
TV System
PAL / NTSC
Total Pixels
976(H) X 582 (V)
Horizontal Resolution
700TVL
Mini Illumination
0.1 Lux IR ON
Video Output
1.0Vp-p Composite, 75Ω(BNC)
S/N(Y Singal)
48dB (Min)/52dB (Max) (AGC off)
Gamma Correction
0.45
LED & IR Distance
3pcs Array LED( <2Lux LED ON, >5Lux LED OFF ) 15m IR Distance
Electronic Shutter
Auto
White Balance
Auto
Lens
3.6mm/6mm Lens（Optional)
Power
DC12V±10%
Operating Temperature
-10℃ to +50℃, RH 80% Max
Storage temperature
-20℃ to +60℃, RH 90% Max
Dimension
105mm(Φ)70(H)mm
Weight
150g
