| Code: | ANT-632 |  |

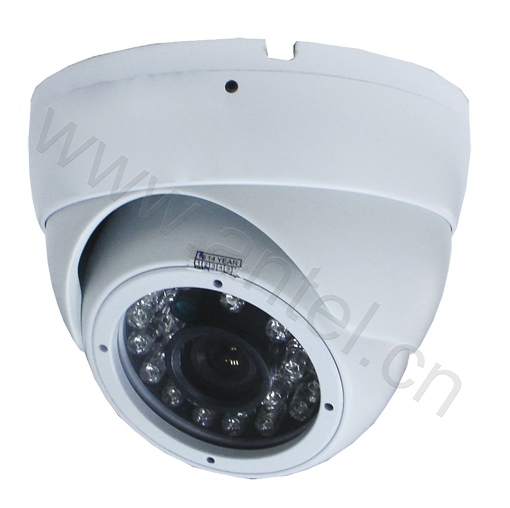

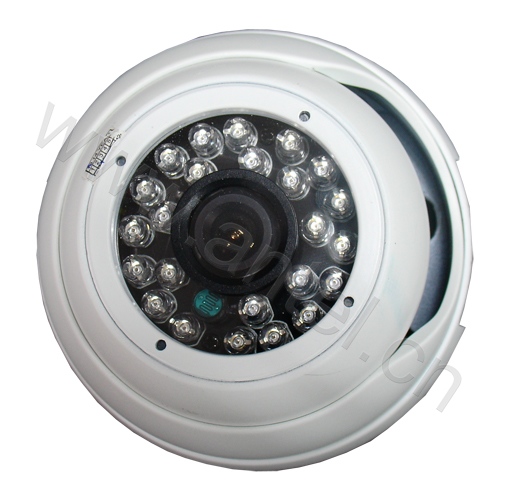

| Name: | 800TVL HR Dome Camera, Aluminum Case |
 |
Specification:
| Model | ANT-632 |
| Image Sensor | 1/3" CMOS |
| TV System | PAL / NTSC |
| Total Pixels | 1020(H) X 596 (V) |
| Horizontal Resolution | 800TVL |
| Mini Illumination | 0.1 Lux IR ON |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) |
| Gamma Correction | 0.45 |
| LED & IR Distance | 24pcs Φ5mm( <2Lux LED ON, >5Lux LED OFF ) 15m IR Distance |
| Electronic Shutter | Auto |
| White Balance | Auto |
| Lens | 3.6mm/6mm Lens（Optional) |
| Power | DC12V±10% |
| Operating Temperature | -10℃ to +50℃, RH 80% Max |
| Storage temperature | -20℃ to +60℃, RH 90% Max |
| Dimension | 93mm(Φ)65(H)mm |
| Weight | 300g |
