| Code: | ANT-616H-4 |  |

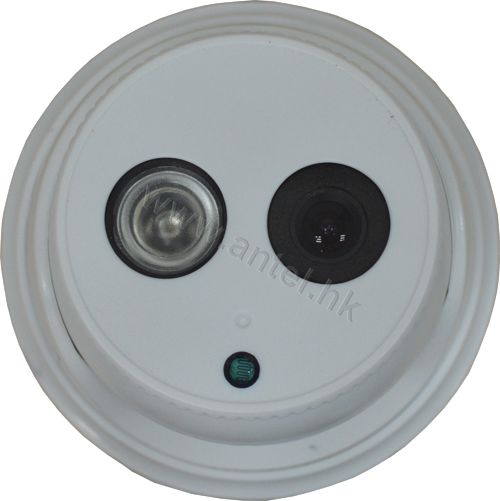

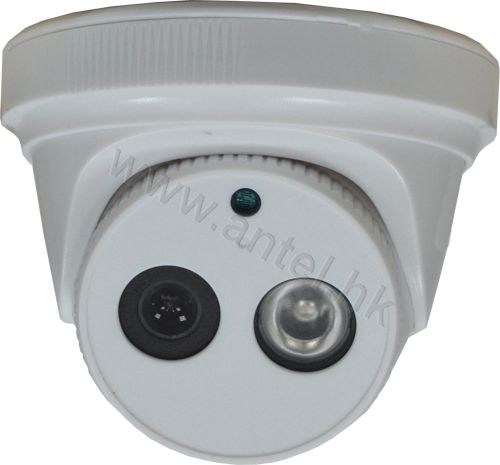

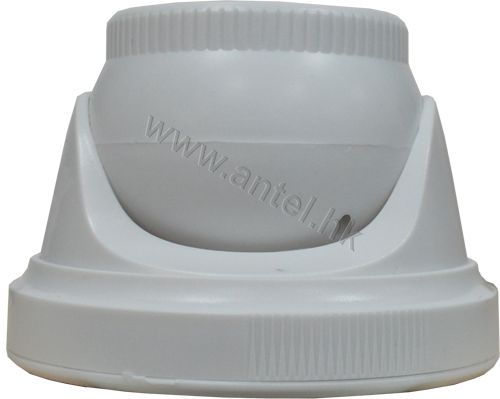

| Name: | HR Dome Camera Sony 900TVL, 30~40m High Power IR LED f=4mm |
 |
Specifications:
| Model | ANT-738PC-6 | |
| Image Sensor | 1/3" Sony CCD | |
| TV System | PAL / NTSC | |
| Total Pixels | 976(H) X 582 (V) | |
| Horizontal Resolution | 900TVL | |
| Mini Illumination | 0 Lux IR ON | |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) | |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) | |
| Gamma Correction | 0.45 | |
| LED & IR Distance | 1pcs Array LED ( <2Lux LED ON, >5Lux LED OFF ) 30~40m IR Distance | |
| Sync. System | Internal | |
| Day & Night Mode | Color (Day: Color Night: Black&White) | |
| Electronic Shutter | Auto | |
| White Balance | Auto | |
| Lens | 4mm/6mm/8mm Lens（Optional) | |
| Protection Grade | IP65 | |
| Power | DC12V±10% | |
| Operating Temperature | -10℃ to +50℃, RH 80% Max | |
| Storage temperature | -20℃ to +60℃, RH 90% Max | |
| Dimension | 115mm(Φ)*78(H)mm | |
| Weight | 198g | |
