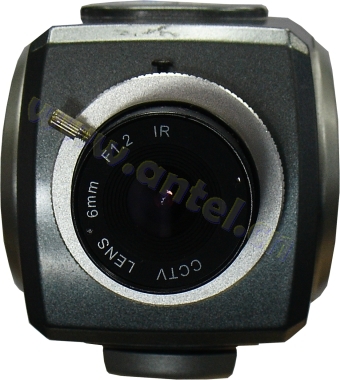

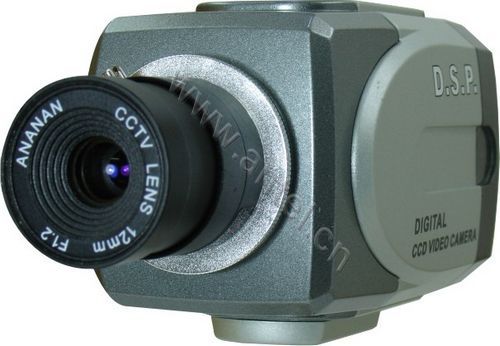

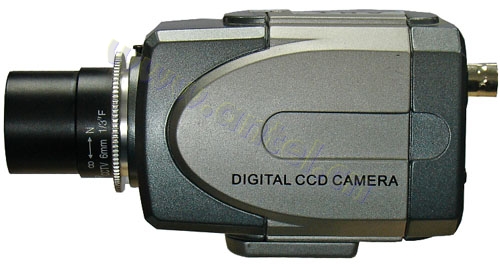

| Code: | ANT-519 |  |
| Name: | silver & grey color 153*62*58mm |
 |
 Specifications: |
||
| Image Sensor: |
1/4" Sharp CCD |
1/3" Sony CCD |
| Horizontal Resolution: |
420TV Line |
480 TV line |
| System: |
PAL:500(H)×582(V) NTSC:510(H)×492(V) |
PAL:752(H)×582(V) NTSC:768(H)×492(V) |
| Mini Illumination: |
0 Lux (F=1.2) |
|
| White Balance: | Auto | |
| BLC: | Auto | |
| AGC: | Auto | |
| Electronics Shutter: |
PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec |
|
| Lens: |
Standard 6mm~12mm Optional 3.6mm,16mm |
|
| S/N Ratio: |
>48dB |
|
| Gamma |
>0.45 |
|
| Operation Temperature: |
-10℃~ +60℃ (Relative Humidity 95% max.) |
|
| Synchronizing System: | Inner Synchoronization | |
| Video Output: |
BNC 1.0VP-P, 75Ω |
|
| Power Supply: |
DC12V±5% <120mA |
|
| Color: | silver & grey | |
| Size: | 153*62*58mm | |
| Weight: | 335g | |
| Packing: | 1pc/gift box | |
