| Code: | ANT-743R1-3.6-1 |  |

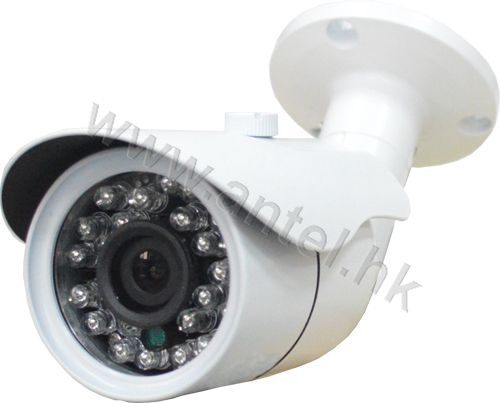

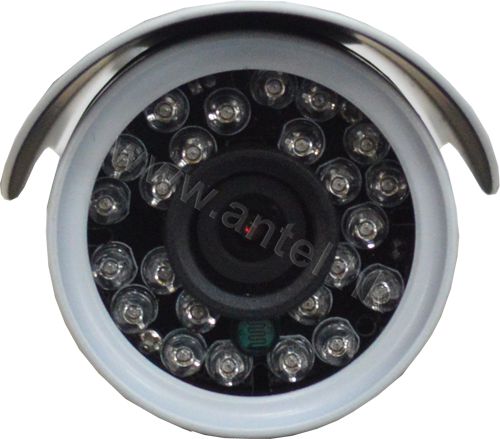

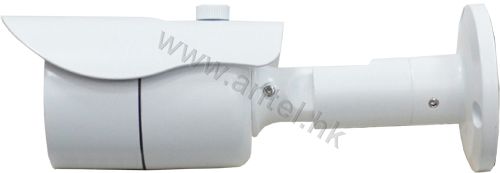

| Name: | AHD Camera CMOS 1.0M, 15~40m IR Led f=3.6mm |
 |
Specifications:
| Model | ANT-743R1-3.6 |
| Image Sensor | 1/4" AR0141 CMOS |
| TV System | PAL / NTSC |
| Total Pixels | 1.0 Mega pixel |
| Mini Illumination | 0.1 Lux IR ON |
| Video Output | 1.0Vp-p Composite, 75Ω(BNC) |
| S/N(Y Singal) | 48dB (Min)/52dB (Max) (AGC off) |
| Gamma Correction | 0.45 |
| LED & IR Distance | 24pcs LED ( <2Lux LED ON, >5Lux LED OFF ) 15~30m IR Distance |
| Sync. System | Internal |
| Day & Night Mode | Color (Day: Color Night: Black&White) |
| Electronic Shutter | Auto |
| White Balance | Auto |
| Lens | 3.6mm/6mm Lens（Optional) |
| Protection Grade | IP65 |
| Power | DC12V±10% |
| Operating Temperature | -10℃ to +50℃, RH 80% Max |
| Storage temperature | -20℃ to +60℃, RH 90% Max |
| Dimension | 174mm(L)*65mm(W)*58mm(H) |
| Weight | 275g |
