| Code: | SNC-SB-150W-111X-1602 |  |
| Name: | LED ShoeBox Light |
 |
Model No. SNC-SB-150W-111X-1602, and the letter "X" inside stands for:
| 1) | ADJUSTABLE FITTER MOUNTING |
| 2) | DIRECT MOUNTING |
| 3) | YOKE MOUNTING |
Advantages:
1)
UL cUL certificate
2)
PHILIPS Chip, high CRI
3)
Mean Well IP65 driver, input voltage 200-480VAC
4)
No UV or IR in the beam
5)
Easy to install and operate
6)
Energy saving, long lifespan
7)
Light is soft and uniform, safe to eyes
8)
Instant start, NO flickering, NO humming
9)
Green and eco-friendly without mercury.
Applications:
1)
Outdoor basketball court, tennis court.
2)
Badminton court, the football field.
3)
The school playground, stadium.
4)
Community leisure entertainment plaza, road lamp etc.
Product Specifications:
Product name
LED Shoe Box Light
Part No
SNC-SB-150W-111X-1602
Light Type
Shoe Box Light
Dimension
558*405*116mm
405*576.7*117mm
405*514.7*120.3mm
Technical Characteristic:
Color temperature
4000K
5000K
5700K
CRI
>70
Lumen
18750-19500LM
Input Power
150W
Viewing Angle
150*85 Degree（Type Ⅲ）
Input Voltage
200-480V 50/60Hz
Driver model
HVG-150-48A (Mean Well Driver )
PFC
>0.9
Waterproof Rating
IP65
Materials:
LED Brand
PHILIPS
LED Type
3030, 1.5W
LED QTY
210
Housing
Magnesium + Aluminum
Housing color
Black
Operating Temperature
-20℃ TO 45℃
Operating Humidity
20％-90％ RH
Storage Temperature
-30℃ TO 80℃
Others:
Storage Humidity
10％-95％
Application
Outdoor
Safety Certification
UL、cUL
Warranty Time
5 Years

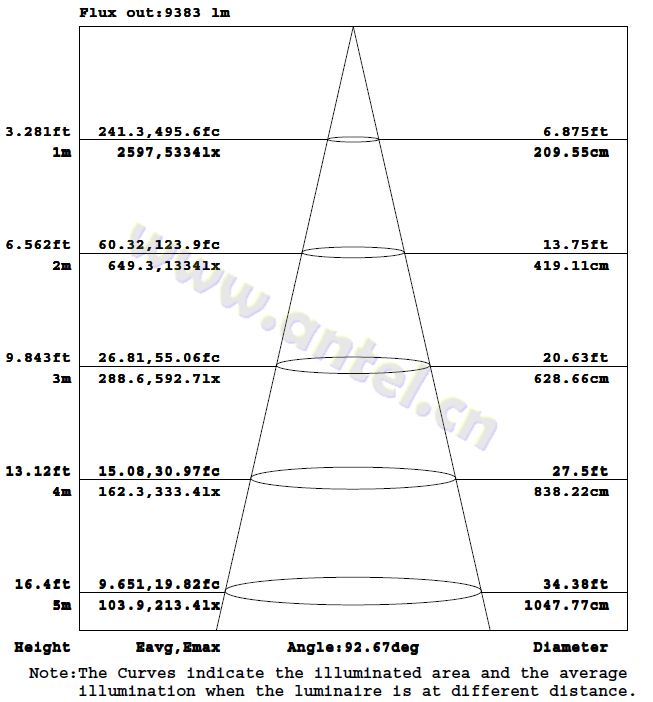

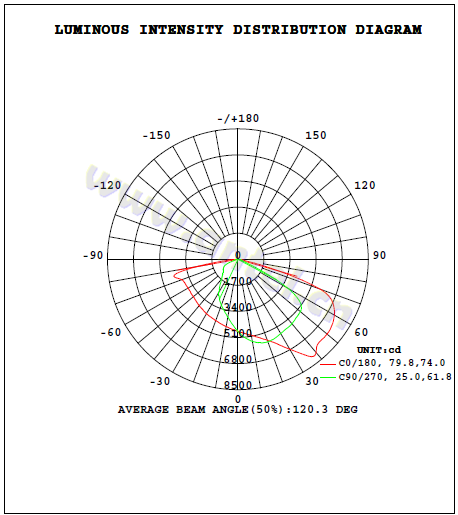

Light Distribution Testing Parameters:
-att1.png)
-att2.png)
Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| Outer box | 630*475*185mm | 1pc | 12kgs | 9.5kgs |
Notice for user:
1)
Please turn off power before install or change assembly parts.
2)
The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated.
3)
No-professionals, must not install and disassemble the lamps.
Trouble Shootings:
Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies
Troubles
Check points
Flickering of the light
Out of working
Please check the connection
