| Code: | FL-150C-347-XX |  |

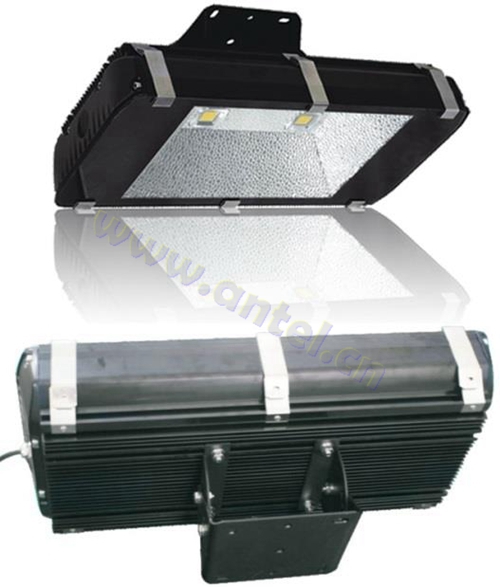

| Name: | LED flood light C series (UL) |
 |
Description & Features:
| 1) | Advanced thermal design, integrated die-casting forming, thermal contact resistance, with effective heat dissipation. |
| 2) | High-performance constant current driver power, no flicker, help protect vision. |
| 3) | Standard by IP65. |
| 4) | Protection class: Class 1. |
| 5) | Original SAMSUNG LED chip. |
| 6) | Lumens efficiency up to 100lm/w for fixture. |
| 7) | No bad glare and stroboscopic, no flicker. |
| 8) | Power factor greater than 0.95. |
| 9) | Long life, L70>50,000 Hours. |
| 10) | Professional technology support, can offer LM80, LM79, Dialux solution, IES. |
Certificate: UL/cUL (E467356), DLC
Warranty: 5 years warranty
Specifications:
| Model No.: | FL-150C-347-XX |
| Power Consumption: | 150W |
| Input Voltage: | 220-440Vac |
| Operate Frequency: | 50-60Hz |
| Lumens Output: | 14200lm |
| LED Brand: | SAMSUNG LH351B |
| Color Temperature: | 3000K, 4000K, 5000K, 6000K |
| CRI: | >75 |
| Beam Angle: | 120° |
| IP Rated: | IP65 |
| Power Factor: | >0.95 |
| Total Harmonic Distortion: | <20% |
| Working Temp.: | -20°C ~ 40°C |
| Storage Temp.: | -40°C ~ 70°C |
| Lifespan L70(H): | >50,000 Hours |
| Cable: | 1.5m three-core high quality silicon wire |
| Fixture Weight: | 9.0kg |
| Note1: Different color LED light performance somewhat deviation,rate≤5% | |
Oridering Information:
| Sample: FL-150C-347V-30K-BK | ||||
| Product | Input Voltage | CCT | Housing color | Operation |
| FL-150C | 347V | 30K | BK | Blank |
| 150W | 220-440Vac | 3000 Kelvin | Black | Non-dimming (Standard) |
| 40K | GY | ADIM | ||
| 4000 Kelvin | Gray | 1-10V dimming | ||
| 50K | ||||
| 5000 Kelvin | ||||
| 60K | ||||
| 6000 Kelvin | ||||

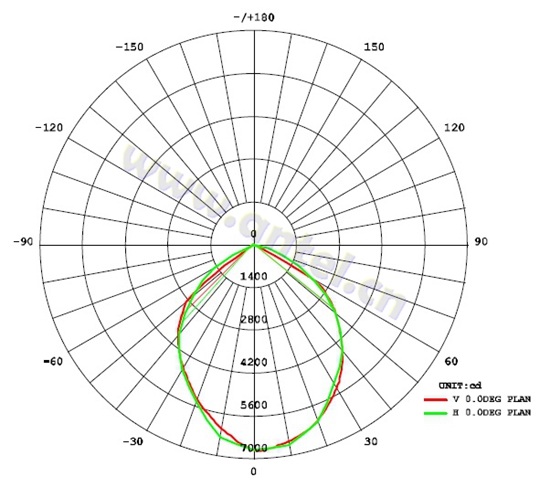

Light Distribution Curve:

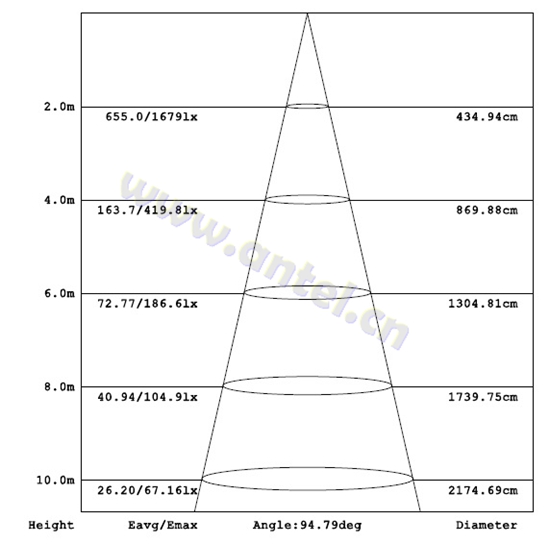

Illumination Distribution:
Packing Information:
| Item | Qty/ctn | NW | GW | Size/ctn |
| FL-150C-347-XX | 2 | 18.3kg | 19.6kg | 420*430*420mm |
Warranty Policy:
| 1 | Standard 5 years after purchase under normal usage |
| 2 | Will provide free/rework new products based on the proof-documents |
| -----(1). If driver failed, we’ll send new driver | |
| -----(2). If LED failed, we’ll sent new LED | |
| -----(3). Unclear reason, we will sent full new set |
