Description & Features:
1) | Advanced thermal design, integrated die-casting forming, thermal contact resistance, with effective heat dissipation. |
2) | High-performance constant current driver power, no flicker, help protect vision. |
3) | Standard by IP65. |
4) | Protection class: Class 1. |
5) | Original SAMSUNG LED chip. |
6) | Lumens efficiency up to 100lm/w for fixture. |
7) | No bad glare and stroboscopic, no flicker. |
8) | Power factor greater than 0.95. |
9) | Long life, L70>50,000 Hours. |
10) | Professional technology support, can offer LM80, LM79, Dialux solution, IES. |
Certificate: UL/cUL (E467356), DLC
Warranty: 5 years warranty
Specifications:
Model No.: | FL-50C |
Power Consumption: | 50W |
Input Voltage: | 100-277Vac |
Operate Frequency: | 50-60Hz |
Lumens Output: | 4700lm |
LED Brand: | SAMSUNG LH351B |
Color Temperature: | 3000K, 4000K, 5000K, 6000K |
CRI: | >75 |
Beam Angle: | 120° |
IP Rated: | IP65 |
Power Factor: | >0.95 |
Total Harmonic Distortion: | <20% |
Working Temp.: | -20°C ~ 40°C |
Storage Temp.: | -40°C ~ 70°C |
Lifespan L70(H): | >50,000 Hours |
Cable: | 1.5m three-core high quality silicon wire |
Fixture Weight: | 3.7kg |
Note1: Different color LED light performance somewhat deviation,rate≤5% |
Oridering Information:
Sample: FL-50C-277V-30K-BK | ||||
Product | Input Voltage | CCT | Housing color | Operation |
FL-50C | 277V | 30K | BK | Blank |
50W | 100-277Vac (Standard) |
3000 Kelvin | Black | Non-dimming (Standard) |
40K | GY | PIRS | ||
4000 Kelvin | Gray | PIR motion sense | ||
50K | ||||
5000 Kelvin | ||||
60K | ||||
6000 Kelvin |
Light Distribution Curve:

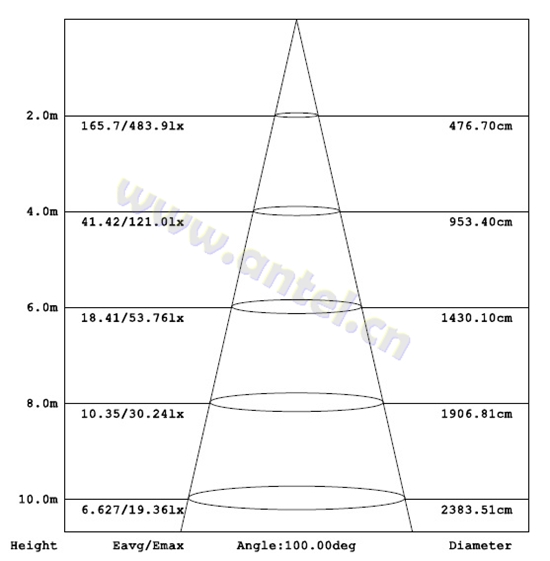

Illumination Distribution:
Packing Information:
Item | Qty/ctn | NW | GW | Size/ctn |
FL-50C | 4 | 14.8kg | 17.5kg | 670*390*300mm |
Warranty Policy:
1 | Standard 5 years after purchase under normal usage |
2 | Will provide free/rework new products based on the proof-documents |
-----(1). If driver failed, we’ll send new driver | |
-----(2). If LED failed, we’ll sent new LED | |
-----(3). Unclear reason, we will sent full new set |
