| Code: | SNC-CP-130W-311X-1601 |  |
| Name: | LED Canopy Light |
 |
Advantages:
1)
PHILIPS Chip, high CRI
2)
Mean Well IP65 driver, input voltage 100-277VAC
3)
No UV or IR in the beam
4)
Easy to install and operate
5)
Energy saving, long lifespan
6)
Light is soft and uniform, safe to eyes
7)
Instant start, NO flickering, NO humming
8)
Green and eco-friendly without mercury
Application: Gas station
Product specifications:
| Product name | LED Canopy Light |
| Part No | SNC-CP-130W-3111-1601 or SNC-CP-130W-3112-1601 |
| Light Type | Canopy Light |
| Dimension | 380*380*78mm |
PS. "X" in model no. "SNC-CP-130W-311X-1601" stands for: 1-Ceiling mounted; 2-Threaded rod mounting;
Technical characteristics:
| Color temperature | 4000K | 5000K | 5700K |
| CRI | >70 | ||
| Lumen | 13000-14300LM | ||
| Input Power | 130W | ||
| Viewing Angle | 110 Degree | ||
| Input Voltage | AC100-277V 50/60Hz | ||
| Driver model | CLG-150-48A( Mean Well Driver ) | ||
| PFC | >0.9 | ||
| Waterproof Rating | IP65 | ||
Materials:
| LED Brand | PHILIPS |
| LED Type | 3030, 1.5W |
| LED QTY | 154 PCS |
| Housing | Aluminum |
| Housing color | White |
Others:
| Operating Temperature | -20℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -30℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Outdoor |
| Safety Certification | UL, cUL |
| Warranty Time | 5 Years |

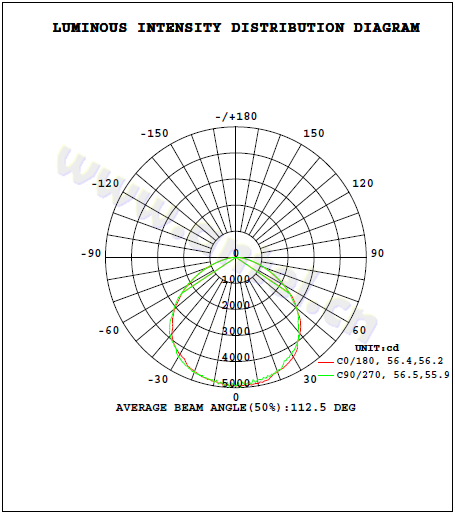

Light distribution testing parameters:
Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| outer box | 425*420*120mm | 1pc | 7.2kgs | 6.3kgs |
Notice for user:
| 1) | Please turn off power before install or change assembly parts. |
| 2) | The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated. |
| 3) | No-professionals, must not install and disassemble the lamps. |
Trouble shootings:
| Troubles | Check points |
| Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
| Out of working | Please check the connection |
