| Code: | SNC-ST-120WFX |  |

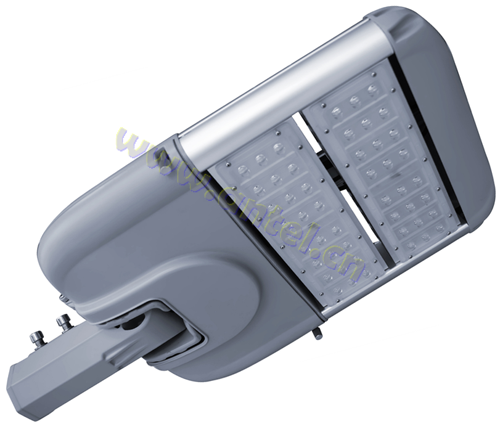

| Name: | LED Street Light |
 |
Model No. SNC-ST-120WFX, and the letter "X" inside stands for:
| 01: | No other solutions or extra accessory parts for the lamp |
| 03: | Lamp + Photocell |
| 04: | Lamp + Surge Protector |
| 07: | Lamp + Photocell + Surge Protector |
Advantages:
| (1) | UL cUL DLC certificate |
| (2) | PHILIPS Chip, high CRI |
| (3) | Mean Well IP65 driver, input voltage 100-277VAC |
| (4) | No UV or IR in the beam |
| (5) | Easy to install and operate |
| (6) | Energy saving, long lifespan |
| (7) | Light is soft and uniform, safe to eyes |
| (8) | Instant start, NO flickering, NO humming |
| (9) | Green and eco-friendly without mercury |
Applications:
| (1) | Roadway lighting； |
| (2) | Gymnasium, park； |
| (3) | Factory, school； |
| (4) | All kinds of residential area, courtyard. |
Product Specifications:
| Product name | LED Street Light |
| Part No | SNC-ST-120WFX |
| Light Type | Street Light |

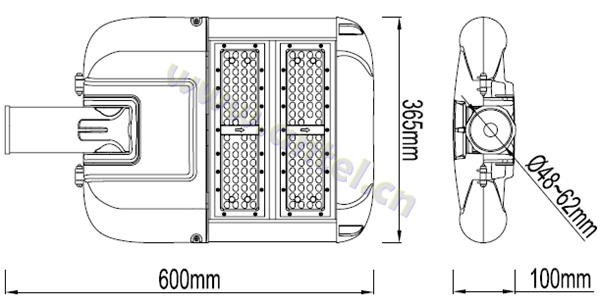

| Dimension | 600*365*100mm |
Technical Characteristic:
| Color temperature | 4000K | 4500K | 5000K | 5700K |
| CRI | >80 | |||
| Lumen | 13000-14500LM | |||
| Input Power | 120W | |||
| Viewing Angle | 150*75 Degree（Type Ⅱ） | |||
| Input Voltage | 100-277VAC 50/60Hz | |||
| Driver model | HLG-150H-48A( Mean Well Driver ) | |||
| PFC | >0.9 | |||
| Waterproof Rating | IP65 | |||
Materials:
| LED Brand | PHILIPS |
| LED Type | 3030,1.5W |
| LED QTY | 140 PCS |
| Housing | Aluminum |
| Housing color | Silver |
| LED Module number | 2 |
Others:
| Operating Temperature | -20℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -30℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Outdoor |
| Safety Certification | UL、cUL |
| Warranty Time | 5 Years |

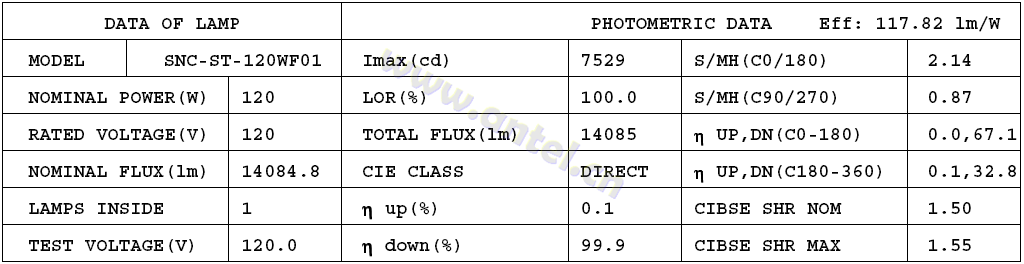

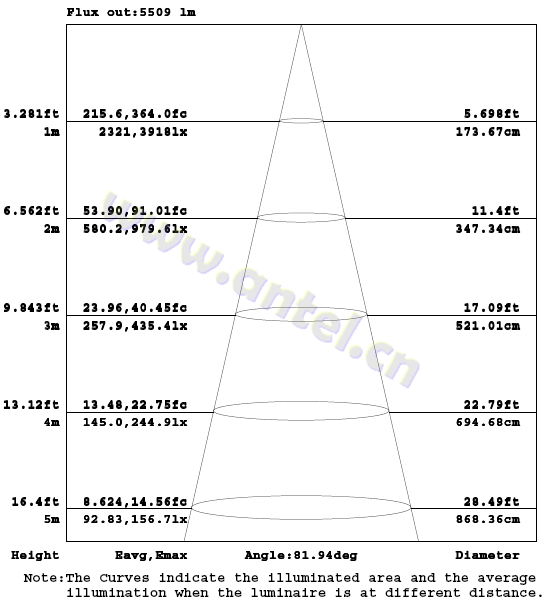

Testing Parameters:
Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| Outer box | 620*380*150mm | 1pc | 9.5kgs | 8.3kgs |
Notice for user:
| 1) | Please turn off power before install or change assembly parts. |
| 2) | The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated. |
| 3) | No-professionals, must not install and disassemble the lamps. |
Trouble Shootings:
| Troubles | Check points |
| Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
| Out of working | Please check the connection |
