| Code: | SNC-WP-80W-2111-1601 |  |
| Name: | LED Wall Pack Light |
 |
Advantages:
| 1) UL cUL DLC certificate |
| 2) IP65 Internal driver, Input voltage 100-277VAC |
| 3) No UV or IR in the beam |
| 4) Easy to install and operate |
| 5) Energy saving, long lifespan |
| 6) Instant start, NO flickering, NO humming |
| 7) Green and eco-friendly without mercury. |

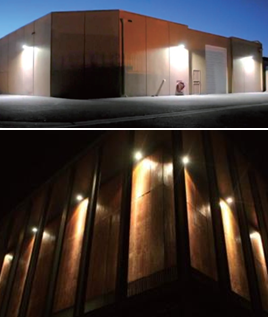

Application: Outdoor Full-Cutoff Wall-Mounted Area Luminaries
Product Specifications:
| Product name | LED Wall Pack Light |
| Part No. | SNC-WP-80W-2111-1601 |

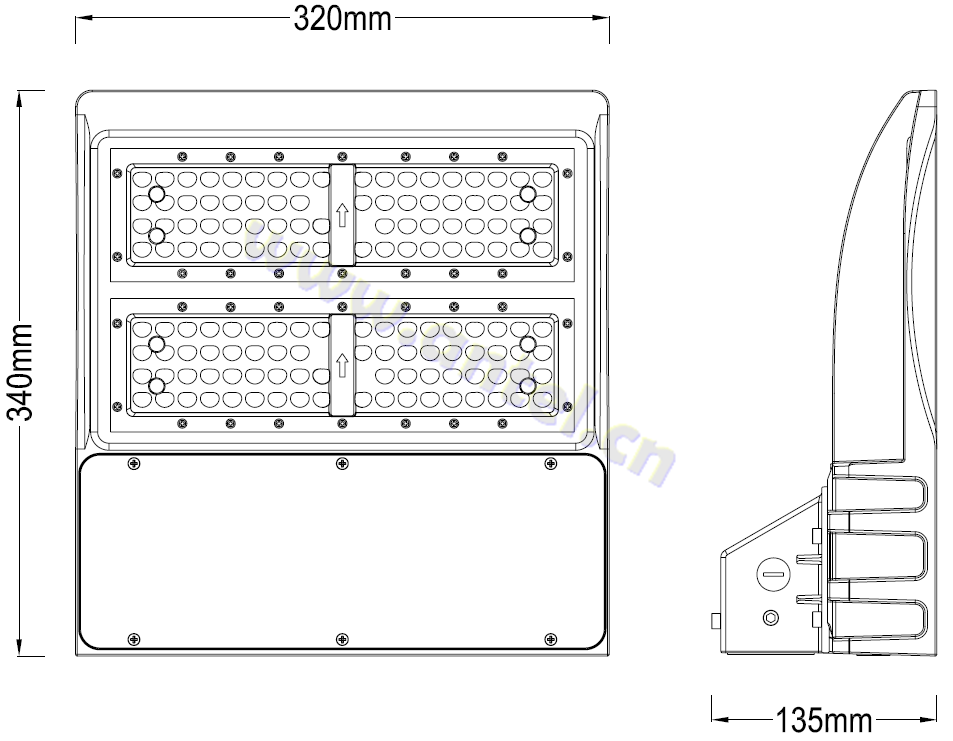

| Dimension | 340 x 320 x 135 mm |
Technical Characteristics:
| Color temperature | 4000K | 5000K | 5700K |
| CRI | >80 | ||
| Lumen | 9500-10500LM | ||
| Input Power | 80W | ||
| Viewing Angle | 150 x 85º （type 3） | ||
| Input Voltage | 100-277VAC 50/60Hz | ||
| Driver model | China Brand Driver | ||
| PFC | >0.9 | ||
| Waterproof Rating | IP65 | ||
Materials:
| LED Brand | PHILIPS LUMILEDS |
| LED Type | LUXEON 3030 2D（1.5W） |
| LED QTY | 140 PCS |
| Housing | Aluminum |
| Housing color | Black |
Others:
| Operating Temperature | -20℃ TO 45℃ |
| Operating Humidity | 20％-90％ RH |
| Storage Temperature | -30℃ TO 80℃ |
| Storage Humidity | 10％-95％ |
| Application | Indoor / Outdoor |
| Safety Certification | UL、cUL、DLC |
| Warranty Time | 5 Years |

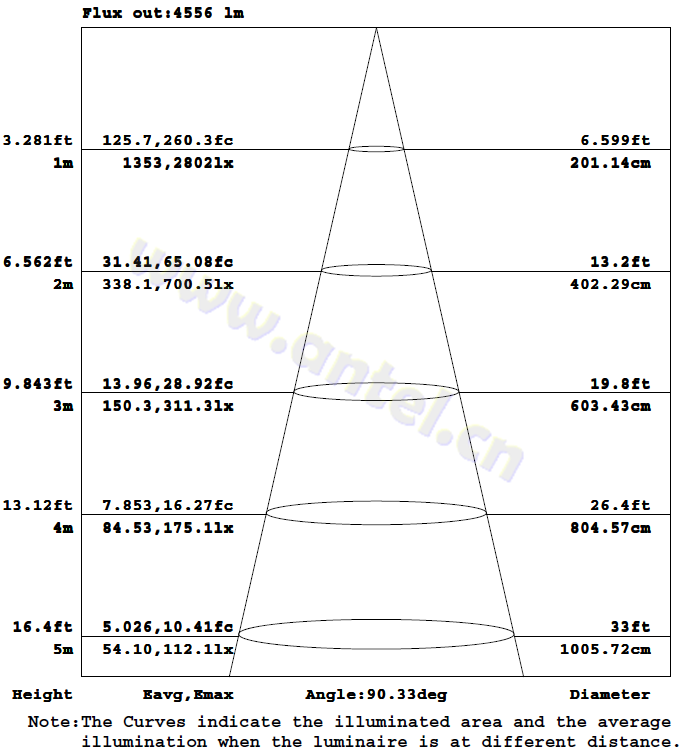

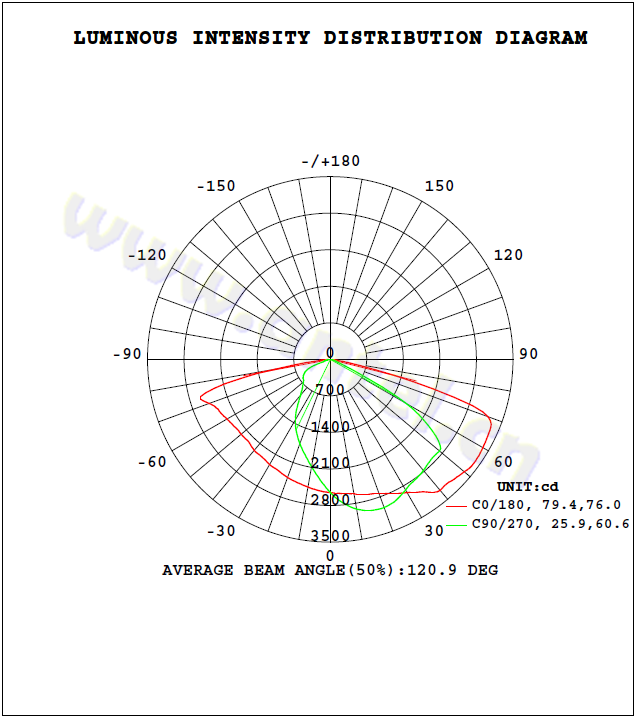

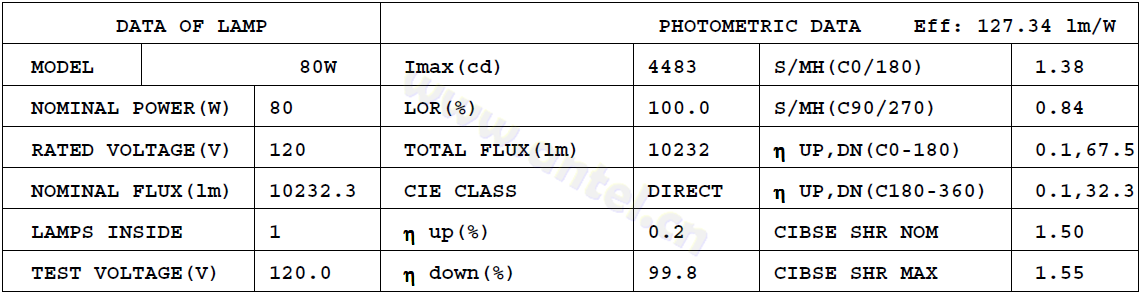

Light Distribution Testing Parameters:

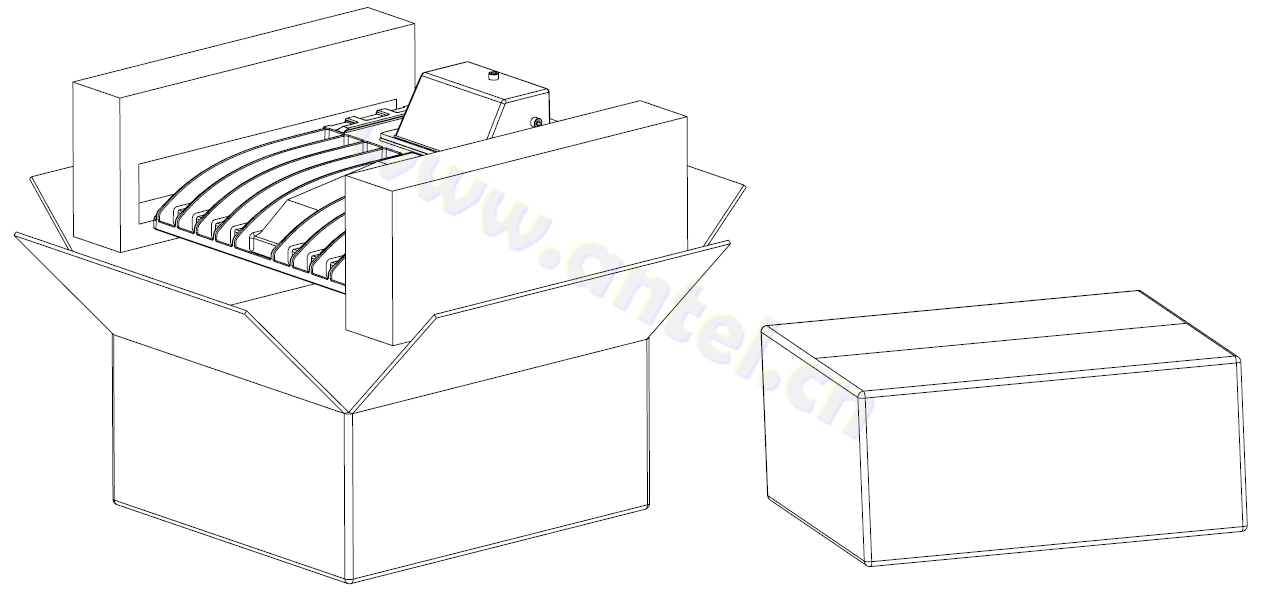

Package:
| Size | Qty/ctn | GW/ctn | NW/ctn | |
| Outer box | 400*370*180mm | 1pc | 6.1kgs | 5.2kgs |
Notice for User:
| 1) Please turn off power before install or change assembly parts. |
| 2) The input voltage and lamps should be matched, after connecting the power line, please make sure the wiring section is insulated. |
| 3) No-professionals, must not install and disassemble the lamps. |
Trouble Shootings:
| Troubles | Check points |
| Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies |
| Out of working | Please check the connection |
