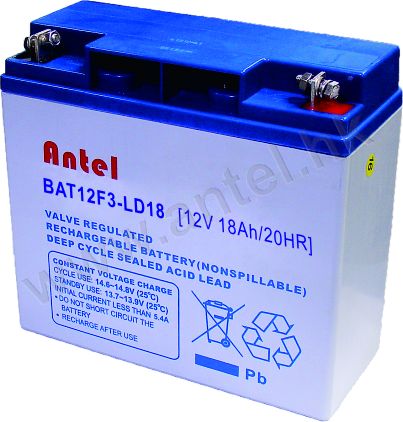

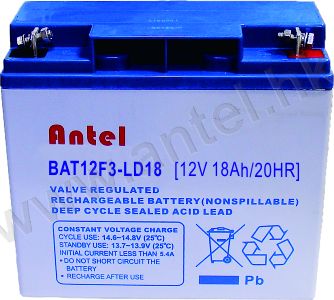

| Code: | BAT12F3-LD18 |  |
| Name: | Acid Lead Deep Cycle Battery |
 |
Features:
| • Capacity range: | 18Ah~3000Ah |
| • Voltage class: | 2V/6V/12V |
| • Long life(25°C): | 5 years(≤28Ah) |
| 10 years(>28Ah) | |
| • Low self-discharge rate: | ≤3%month |
| • Good discharge performance | |
| • High sealed reaction efficiency: | ≥99% |
| • Wide temperature range: | -20°C~60°C |
| • Structure: | compact design,shorter internal cell connectors, low internal resistance |
| • Plate: | pasted flat type,with patent deep cycle formula of AM |
| • Terminal: | more types terminals for selection |
| • Vent system: | gas vents through flame arrester/filter |
| • Separator: | using improved AGM separator,lower resistance,and higher assembling pressure to increase deep cycle life |
| • Battery case: | ABS(UL94-HB) and UL94-V0 optional |
| • Terminal sealing: | double sealing technics(mechanical+epoxy gule) |
Specifications:
| Model | Nominal Voltage |
Capacity C20 |
Weight | Terminal Type |
|
| Lbs | kg | ||||
| (V) | (Ah) | ||||
| BAT12F3-LD18 | 12 | 18 | 13.01 | 5.9 | F3 |
| Dimension | Internal Res. |
Short Circuit Current |
|||||||
| Length | Width | Height | Total Height | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | (mΩ@25°C) | (A) |
| 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 14.0 | 900 |
