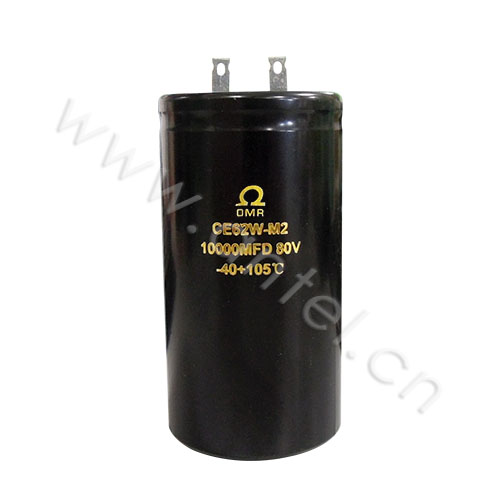

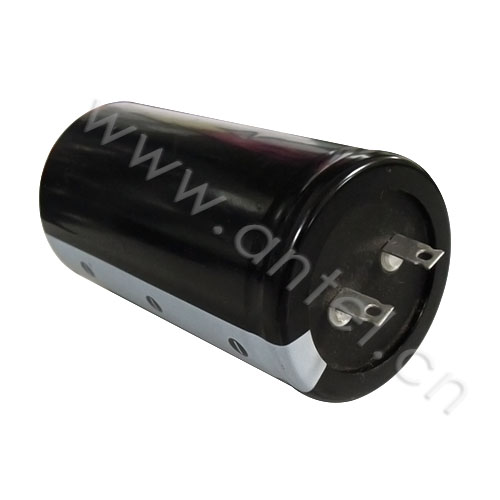

| Code: | OMR brand Aluminum Electrolytic Capacitor (Chip pin type) |  |
| Name: | Real high quality aluminum electrolytic capacitor |
 |
| Specifications: | |||||||||
| Cap | V | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 |
| (μF) | Item | D*L | D*L | D*L | D*L | D*L | D*L | D*L | D*L |
| 2200 | 25*40 | ||||||||
| 3300 | 30*45 | ||||||||
| 4700 | 22*50 | 30*50 | |||||||
| 6800 | 22*50 | 25*40 | 35*50 | ||||||
| 10000 | 22*50 | 30*40 | 30*45 | 35*70 | |||||
| 15000 | 22*50 | 25*40 | 35*45 | 35*50 | |||||
| 22000 | 22*50 | 25*40 | 30*50 | 35*50 | 35*70 | ||||
| 33000 | 22*40 | 25*40 | 30*50 | 35*50 | 35*75 | 40*80 | |||
| 47000 | 35*40 | 22*45 | 30*40 | 35*50 | 35*70 | ||||
| Cap | V | 160 | 200 | 250 | 350 | 400 | 450 | 500 | |
| (μF) | Item | D*L | D*L | D*L | D*L | D*L | D*L | D*L | |
| 120 | 22*45 | ||||||||
| 150 | 22*45 | 25*40 | |||||||
| 220 | 25*30 | 25*35 | 25*45 | 30*45 | |||||
| 330 | 30*35 | 30*40 | 30*45 | 35*60 | |||||
| 470 | 25*40 | 30*45 | 35*40 | 35*50 | 35*80 | ||||
| 680 | 22*45 | 30*40 | 30*50 | 35*50 | 35*60 | 40*80 | |||
| 820 | 25*40 | 30*45 | 35*50 | 35*60 | 35*75 | ||||
| 1000 | 25*40 | 30*40 | 30*50 | 35*65 | 35*75 | 40*80 | |||
| 2200 | 30*50 | 35*50 | 35*60 | ||||||
| 3300 | 35*60 | 35*70 | 35*80 | ||||||
| 4700 | 35*80 | ||||||||
