| Model |

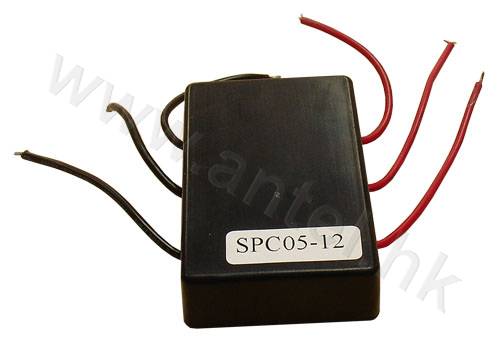

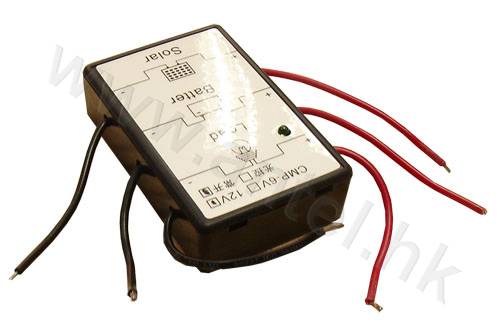

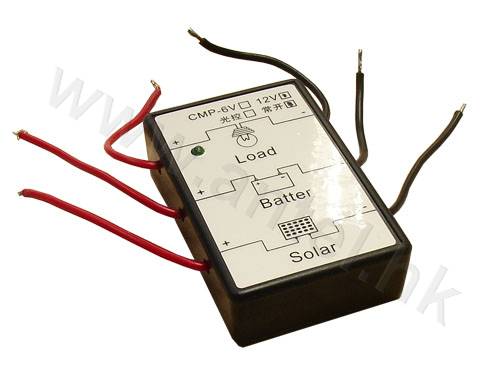

SPC05-12 |
| Rated Voltage |
DC 12V |
| Max Charging Current |
5A |
| Max Discharging Current |
5A |
| Over Charge Protection |
14.0V |
| Over Discharge Protection |
10.6V |
| Control Mode |
Charge:PWM pulse regulating |
| Operation Temperature |
-20℃~+60℃ |
| Dimension(L*W*H) |
69*45*18mm |
| Weight |
36g |
| Overload and Shortcut Protection |
1.25 times of rated current -30s;1.5times of rated current-5s overload protection;>=3times of rated current-shortcut protection |
| Protection Circuit |
Over charge,,over discharge,shortcut,overload protection |
All protections are no harmful to any part,fuse not blew.Fuse is the final protection. |
| Solar battery,acid battery wrong connection protection |
