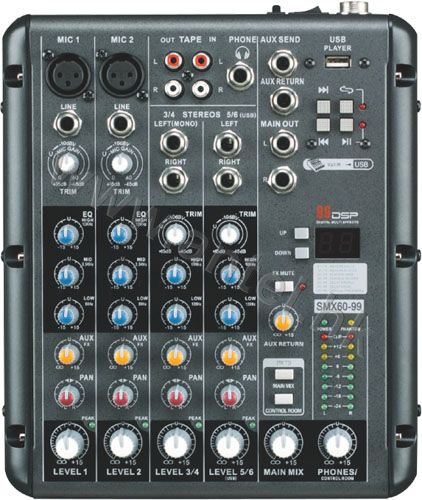

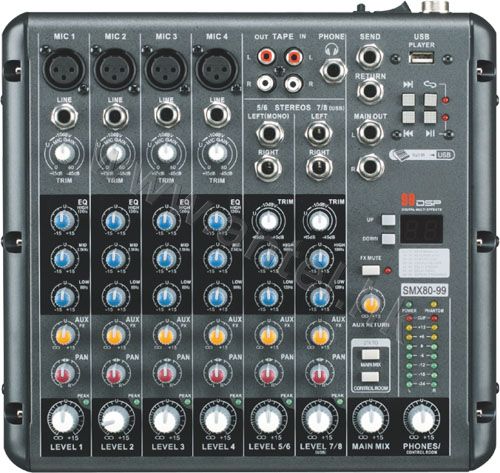

| Code: | SMX60-99 SMX80-99 |  |
| Name: | Audio mixer SMX series |
 |
● 6/8 channel mixing console with two stereo channels and a separate stereo tape channel ● Separate input jack controls for MIX and Line inputs on all mono channels ● Low-noise, discrete MIC preamplifiers on all microphone inputs ● Balanced 1/4” stereo jacks and balance controls on all stereo channels ● Separate stereo tape channel with 1/4” and RCA jacks ● Stereo output for recording applications ● English music as active 3-band EQ on all mono channels ● 2-band EQ on stereo channels ● AUX and effects paths as well as separate gain controls on all channels ● 48V phantom power ● USB input and playback ● 99 DSP digital multi effects
Features:
Specifications:
| Model | SMX60-99 | SMX80-99 |
| Channel MIC/line | 6CH | 8CH |
| THD | ≤0.03% | ≤0.03% |
| Frequency Response | 20Hz-20kHz±1dB | 20Hz-20kHz±1dB |
| S/N Ratio | ≥96dB | ≥96dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | 99DSP | 99DSP |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
