FEATURES

● LED indicator

● 4 Line/2 Phono/1 MIC input select

● Master and REC output

● Dual bands 10 digits LED level display

 INPUT LEVEL

● MIC:1.5mV/600Ω unbalanced

● Phono:5mV/50kΩ

● Line:150mV/27kΩ

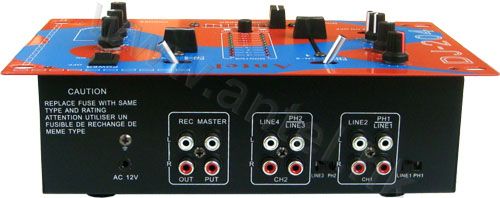

 OUTPUT LEVEL

● Master:1V/10kΩ

● Record:1V/10kΩ

 MIC EQ CONTROL

● High:10kHz/±12dB

● Low:80Hz/±12dB
