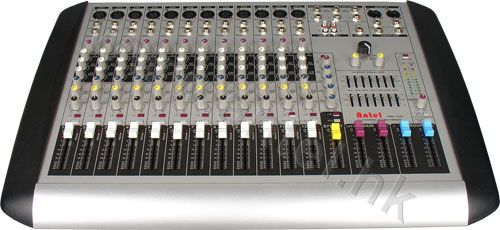

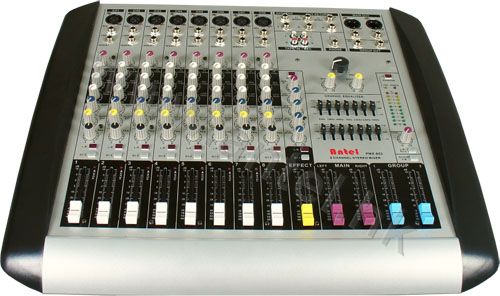

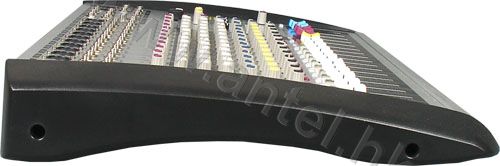

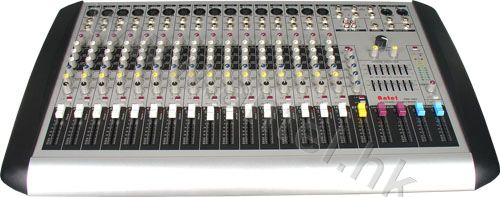

| Code: | PMX-603 PMX-803 PMX-1203 PMX-1603 |  |
| Name: | Audio mixer PMX series |
 |
● ●Extremely high headroom offering more dynamic range ●Balanced inputs for highest signal integrity ●Ultra-musical 3-band EQ on all mono channels ●Peak LEDs all mono channels ●2 AUX sends per channel for external effects and monitoring ●Digital f the effect system inside ●Separate master Mix control room and headphone outputs ●2-track inputs assignable to master Mix, control room/headphone output ●Dual bands 10 digits LED level display ●48V phantom power
Features:
Specifications:
| Model | PMX-603 | PMX-803 | PMX-1203 | PMX-1603 |
| Channel MIC/line | 6CH | 8CH | 12CH | 16CH |
| THD | ≤0.03% | ≤0.03% | ≤0.03% | ≤0.03% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥101dB | ≥101dB | ≥101dB | ≥101dB |
| Max Output | 4V Max | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V | +48V |
| Effector | Echo | Echo | Echo | Echo |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
