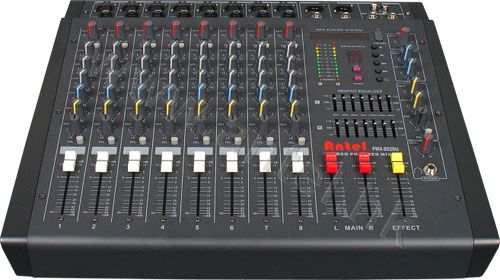

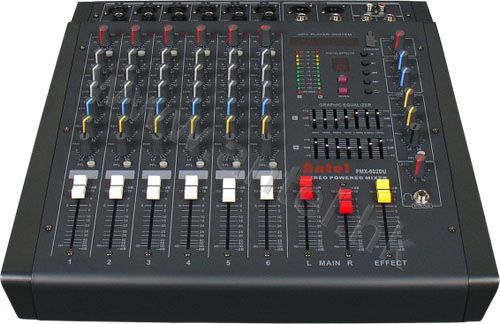

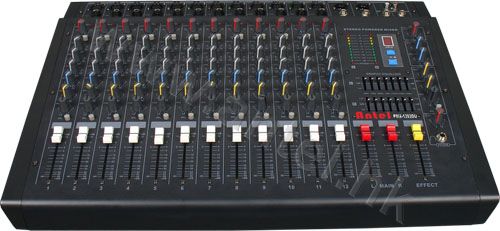

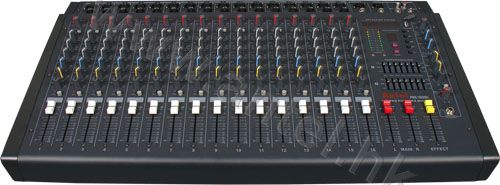

| Code: | PMX-602D(U) PMX-802D(U) PMX-1202D(U) PMX-1602D(U) |  |
| Name: | Audio mixer PMX series |
 |
● 6/8/12/16 channels ● 48V phantom power ● Dual 7-band graphic equalizer ● 3-band EQ for each channel ● 16 DSP effector and digital display ● Record and headphone monitor output ● Dual bands 10 digits LED level display ● PAN,PFL and FX for each channel ● ±20dB signal fluctuation switch ● Built-in audio power amplifier ● USB player optional
Features:
Specifications:
| Model | PMX-602D/PMX-602DU | PMX-802D/PMX-802DU | PMX-1202D/PMX-1202DU | PMX-1602D/PMX-1602DU |
| Channel MIC/line | 6CH | 8CH | 12CH | 16CH |
| THD | ≤0.08% | ≤0.08% | ≤0.08% | ≤0.08% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥106dB | ≥106dB | ≥106dB | ≥106dB |
| Max Output | 4V Max | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V | +48V |
| Effector | Echo | Echo | Echo | Echo |
| Output Power | 2*200W 8Ω | 2*200W 8Ω | 2*200W 8Ω | 2*200W 8Ω |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
