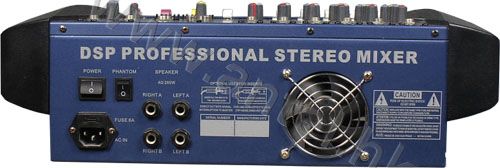

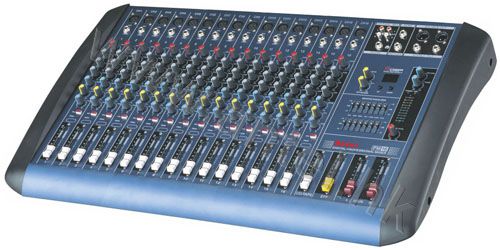

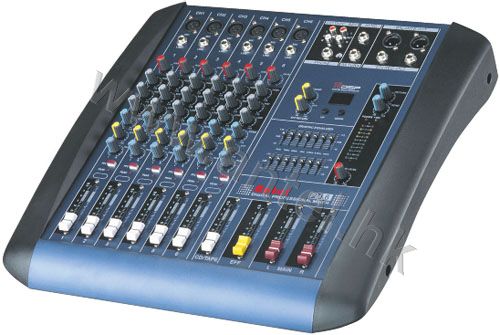

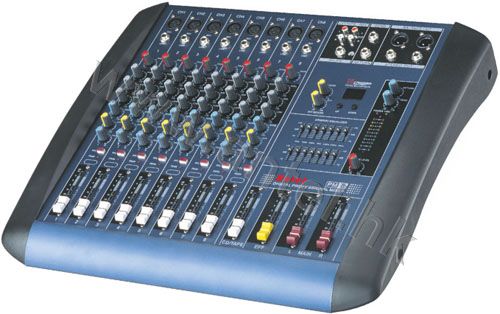

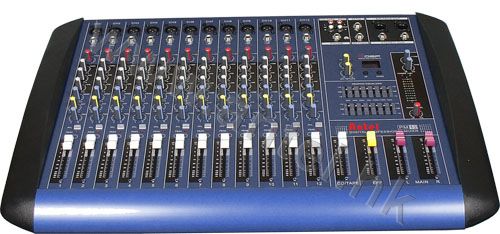

| Code: | PM-6(PM-6D) PM-8(PM-8D) PM-12(PM-12D) PM-16(PM-16D) |  |
| Name: | Audio mixer PM series |
 |
Features:
● 6/8/12/16 channels
● 48V phantom power
● Dual 7-band graphic equalizer
● 3-band EQ for each channel
● 16 DSP effector and digital display
● Record and headphone monitor output
● Dual bands 10 digits LED level display
● PAN,PFL and FX for each channel
● ±20dB signal fluctuation switch
● Built-in audio power amplifier
● 1 Aux send and 1 internal AUX return for each channel
Specifications:
| Model | PM-6/PM-6D | PM-8/PM-8D | PM-12/PM-12D | PM-16/PM-16D |
| Channel MIC/line | 6CH | 8CH | 12CH | 16CH |
| THD | ≤0.05% | ≤0.05% | ≤0.05% | ≤0.05% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥96dB | ≥96dB | ≥96dB | ≥96dB |
| Max Output | 4V Max | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V | +48V |
| Effector | Echo | Echo | Echo | Echo |
| Output Power | 2*280W 4Ω | 2*280W 4Ω | 2*280W 4Ω | 2*280W 4Ω |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
