| Code: | P-6D P-6DU P-8D P-8DU P-12D P-12DU |  |

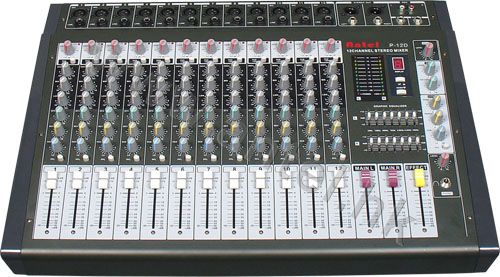

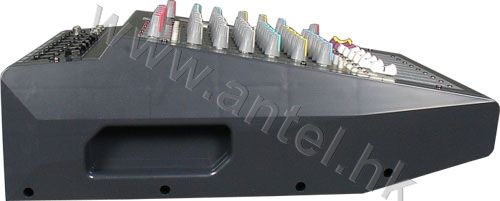

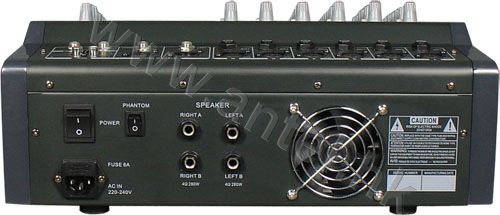

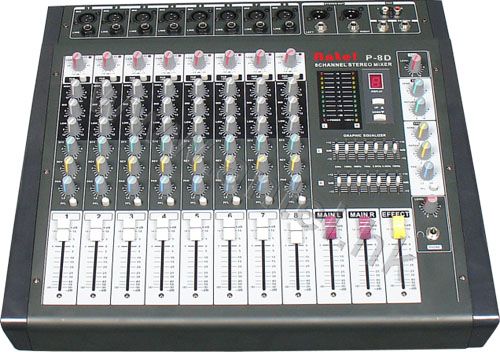

| Name: | Audio mixer P series |
 |
Features:
● 6/8/12 channels
● 48V phantom power
● Dual 7-band graphic equalizer
● 3-band EQ for each channel
● 16 DSP effector and digital display
● Record and headphone monitor output
● Dual bands 10 digits LED level display
● PAN,PFL and FX for each channel
● ±20dB signal fluctuation switch
● Built-in audio power amplifier
● USB player optional
Specifications:
| Model | P-6D/P-6DU | P-8D/P-8DU | P-12D/P-12DU |
| Channel MIC/line | 6CH | 8CH | 12CH |
| THD | ≤0.1% | ≤0.1% | ≤0.1% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥-103dB | ≥-103dB | ≥-103dB |
| Max Output | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V |
| Effector | Echo | Echo | Echo |
| Output Power | 2*200W 8Ω | 2*200W 8Ω | 2*200W 8Ω |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
