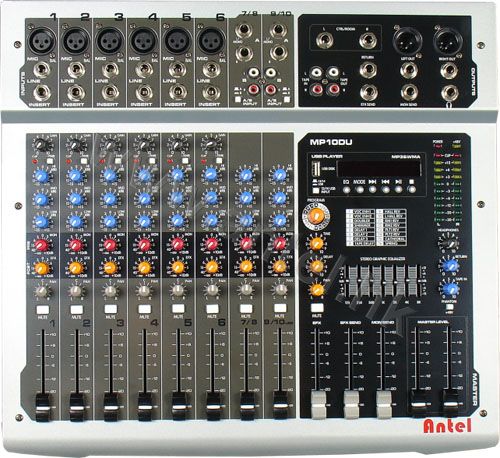

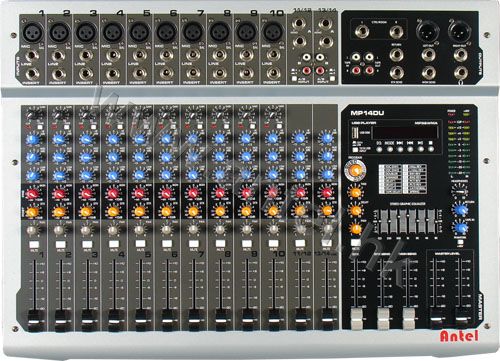

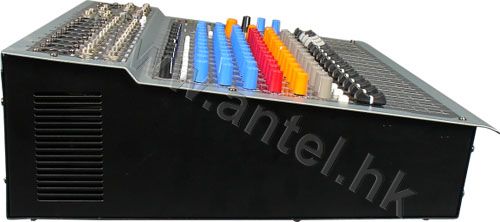

| Code: | MP10DU MP14DU |  |
| Name: | Audio mixer MP series |
 |
Features:
● 10/14 channels (6/10 mono MIC/Line in,2 stereo Line in)
● 48V phantom power
● 7-band graphic equalizer
● 3-band EQ for each channel
● 16 DSP effector
● Record and headphone monitor output
● Dual bands 10 digits LED level display
● PAN,MUTE and EFX for each channel
● Built-in audio power amplifier
● ±20dB signal fluctuation switch
● Stereo outputs with 1/4 inch unbalanced and XLR balanced connectors
● USB player with LED display
Specifications:
| Model | MP10DU | MP14DU |
| Channel MIC/line | 10CH | 14CH |
| THD | ≤0.01% | ≤0.01% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥110dB | ≥110dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | Echo | Echo |
| Output Power | 2*200W 8Ω | 2*200W 8Ω |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
