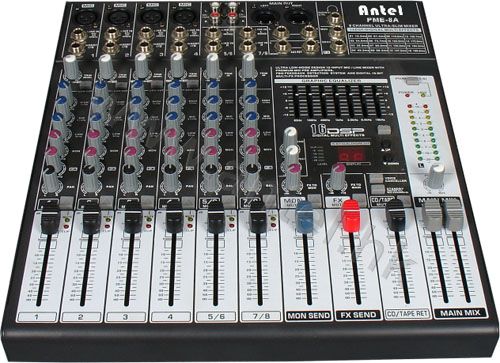

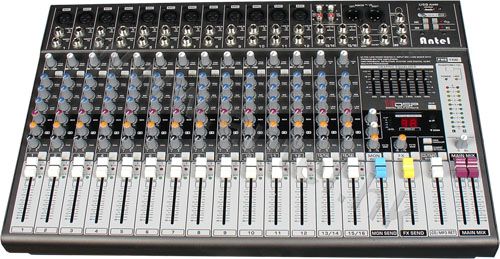

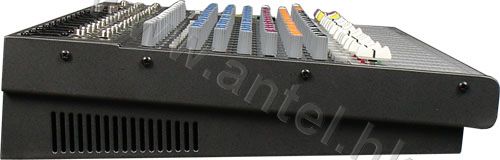

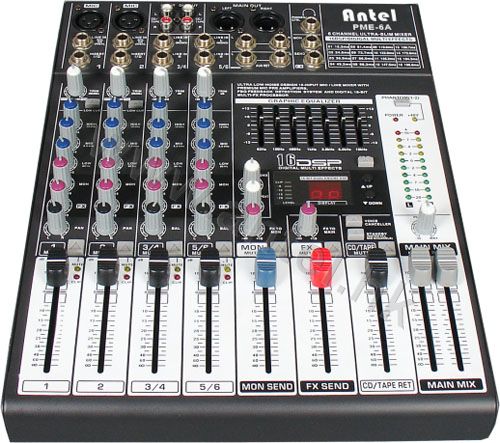

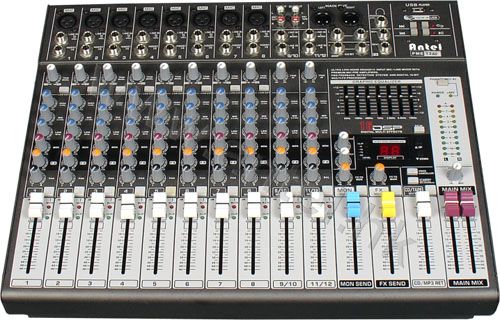

| Code: | PME-6A(U) PME-8A(U) PME-12A(U) PME-16A(U) |  |
| Name: | Audio mixer PME series |
 |
Features:
● 6/8/12/16 channels (2/4/8/12 mono MIC/Line in,2 stereo Line in)
● 48V phantom power
● 7-band graphic equalizer
● 3-band EQ for each channel
● 16 DSP effector and digital display
● Record and headphone monitor output
● Dual bands 10 digits LED level display
● PAN, Mute and FX for each channel
● 2 Aux sends and 2 internal AUX returns for each channel
● USB player optional
Specifications:
| Model | PME-6A/PME-6AU | PME-8A/PME-8AU | PME-12A/PME-12AU | PME-16A/PME-16AU |
| Channel MIC/line | 6CH | 8CH | 12CH | 16CH |
| THD | ≤0.01% | ≤0.01% | ≤0.01% | ≤0.01% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥101dB | ≥101dB | ≥101dB | ≥101dB |
| Max Output | 4V Max | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V | +48V |
| Effector | Echo | Echo | Echo | Echo |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
