| Code: | MC-80D |  |

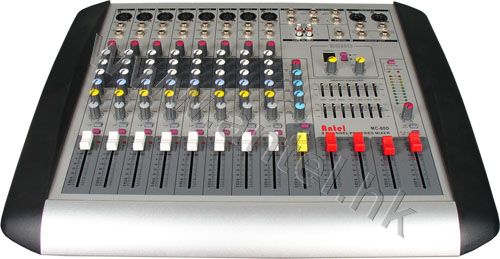

| Name: | Audio mixer MC series |
 |
Features:
● 8 mono input channels with gold plated XLRs and balanced line inputs
● Extremely high headroom-offering more dynamic range
● Balanced inputs for highest signal integrity
● Ultra-musical 3-band EQ on all mono channels
● Peak LEDs in all mono channels
● 2 AUX sends per channel for external effects and monitoring
● Digital f the effect system inside
● Separate master Mix control room and headphone outputs
● 2-track inputs assignable to master Mix, control room/headphone output
● Dual bands 10 digits LED level display
● Built-in audio power amplifier
● 48V phantom power
Specifications:
| Model | MC-80D |
| Channel MIC/line | 8CH |
| THD | ≤0.01% |
| Frequency Response | 20Hz-20kHz±3dB |
| S/N Ratio | ≥110dB |
| Max Output | 4V Max |
| Input Sensitivity | Mic-60dB |
| Line-40dB | |
| Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | |
| Phantom Power | +48V |
| Effector | Echo |
| Output Power | 2*200W 8Ω |
| Power Supply | AC 220V 50Hz |
