Features:
● 16, 24, 32, 40 channels
● L/R and M main outputs
● 4 audio groups with pan control
● 6 auxiliary sends with pre/post fader switching per channel
● 2 stereo channels each with mic and dual stereo line inputs
● 7*4 matrix console
● Special dual functionality for FOH and/or Monitor mixing
● M can be configured as L/R sum, wedge, or Aux-Fed sub or C master
● Recording capable with channel direct outputs
● Matrix external inputs with level trims and common input capability
● Stereo channel line inputs can be independently routed to L/R
● Stereo channel mic input breakpoints for cross patching into matrix
● Responsive 4 band, 2 sweep EQ
● 100Hz channel high pass filters
● Individual phantom power and Polarity switching
● Dedicated Channel, Master and stereo Monitor meters
● Mutes, meters and AFL on all fader masters
● Assignable talkback
● 1kHz oscillator and pink noise generator
● 2-track monitoring and replay to L/R
● Headphones and local monitor outputs
● Ultra low noise mix head amp design
● Electronically balanced XLR outputs with +26dBu drive capability
● Preamp +34dBu maximum input capability for mic or line

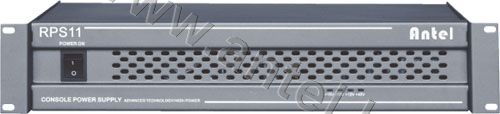

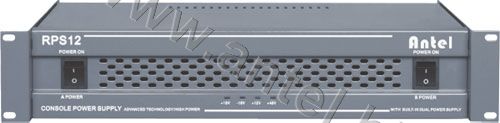

● External RPS11 power supply and spare socket for power supply RPS12 (40CH only)
● 100mm dust protected faders
● Metal jacks, gold-plated XLRs, sealed pots and switches
● Individual circuit card assembly with nutted pots
● Solid copper bus bar grounding
● 4-pin XLR lamp sockets
Specifications:

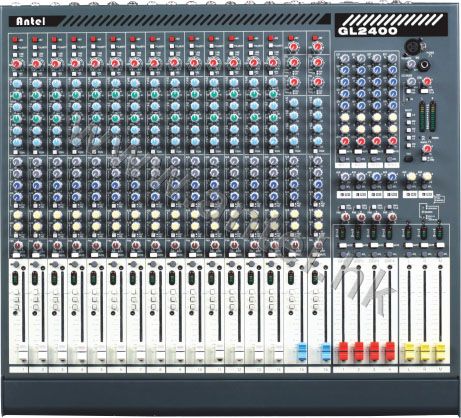

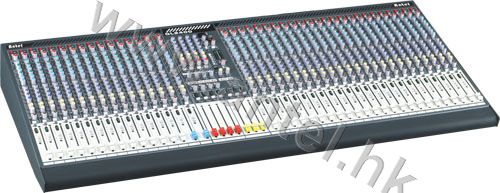

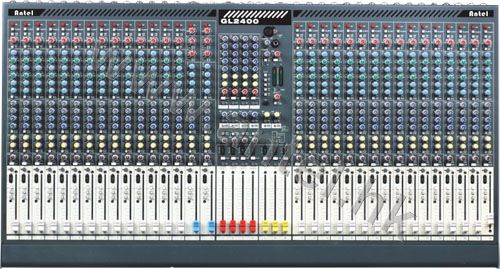

Model | GL2400-416 | GL2400-424 | GL2400-432 | GL2400-440 |
Channel | 14 Mono + 2 Stereo | 22 Mono + 2 Stereo | 30 Mono + 2 Stereo | 38 Mono + 2 Stereo |
Channel EQ | 4 Band | 4 Band | 4 Band | 4 Band |
AUX | 6 | 6 | 6 | 6 |
Return | 2 | 2 | 2 | 2 |
Main Out | 1 Stereo | 1 Stereo | 1 Stereo | 1 Stereo |
Groups | 4 | 4 | 4 | 4 |
Phantom Power | 48V DC | 48V DC | 48V DC | 48V DC |
Matrix | 7*4 | 7*4 | 7*4 | 7*4 |
