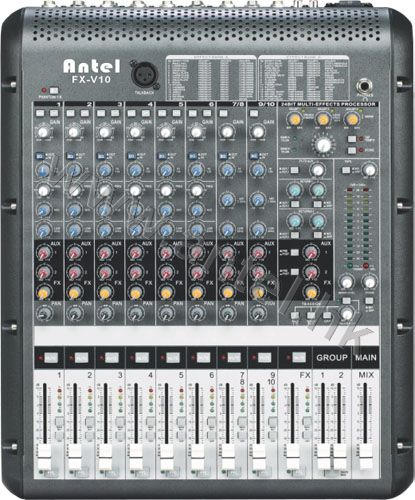

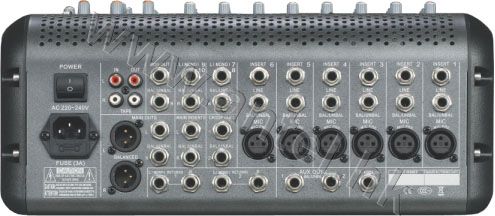

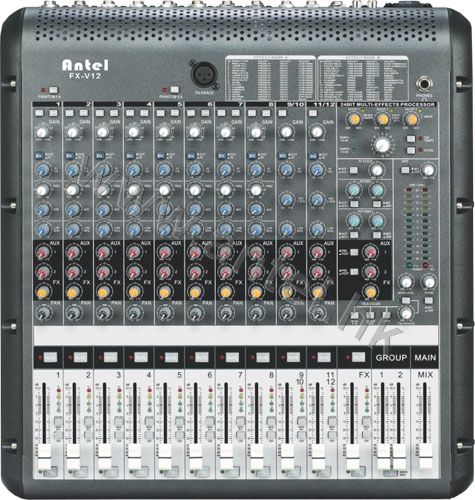

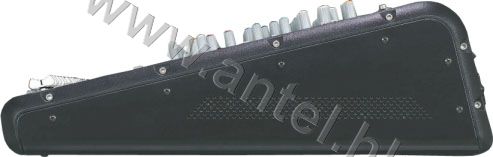

| Code: | FX-V10 FX-V12 |  |
| Name: | Audio mixer FX series |
 |
Features:
● 10/12 channels (6/8 mono MIC/Line in,2 stereo Line in)
● Individual 48V phantom power switches on all mic inputs
● 4- band Perkins EQ with swappable MIDs on MIC/Line channels
● Built-in 24 Bit DSP effector
● 3-band Perkins EQ on stereo line channels
● Record and headphone monitor output
● Dual bands 12 digits LED level display
● PAN,PFL,MUTE, and FX sends solo on each channel
● Signal level 4 LEDs for each channel
● Logarithmic taper 60mm faders
● 3 AUX sends,2 stereo AUX returns, 2 Groups output
Specifications:
| Model | FX-V10 | FX-V12 |
| Channel MIC/line | 10CH | 12CH |
| THD | ≤0.003% | ≤0.003% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥89dB | ≥89dB |
| Max Output | 4V Max | 4V Max |
| Input Sensitivity | Mic-21dB | Mic-21dB |
| Line-21dB | Line-21dB | |
| Aux-22dB Tape-30dB | Aux-22dB Tape-30dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V |
| Effector | Echo | Echo |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz |
