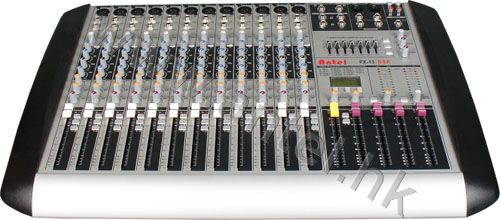

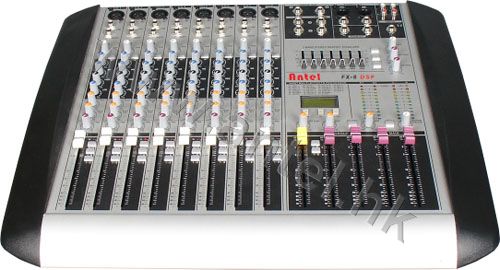

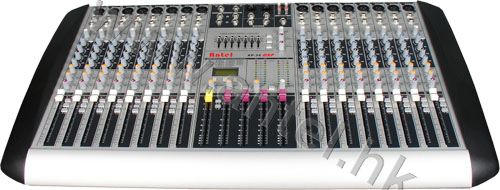

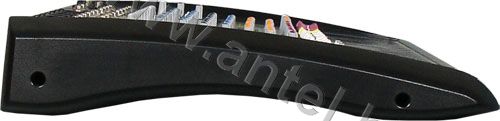

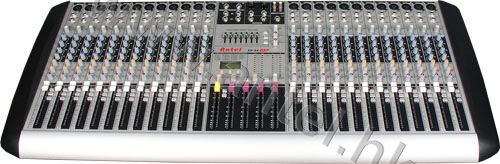

| Code: | FX/XP-08DSP FX/XP-12DSP FX/XP-16DSP FX/XP-24DSP |  |
| Name: | Audio mixer FX series |
 |
Features:
● 8/12/16/24 mono input channels with gold plated XLRs and balanced line inputs
● Ultra-low noise discrete MIC preamps with +48V phantom power
● 0/2 stereo input channels with balanced TRS jacks
● Extremely high headroom offering more dynamic range
● Balanced inputs for highest signal intergrity
● Ultra-musical 3-band EQ+FREQ on all mono channels and 4-band EQ on all stereo channels
● Peak LEDs in all mono and stereo channels
● 2 Aux sends per channel for external effects and monitoring
● 16 bit (FX),26 bit (XP) multi-effects processor internal
● 2-track inputs assignable to master mix, control room/headphone output
● Highly accurate 10 segment bargraph meters
Specifications:
| Model | FX-08DSP/XP-08DSP | FX-12DSP/XP-12DSP | FX-16DSP/XP-16DSP | FX-24DSP/XP-24DSP |
| Channel MIC/line | 8CH | 12CH | 16CH | 24CH |
| THD | ≤0.05% | ≤0.05% | ≤0.05% | ≤0.05% |
| Frequency Response | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB | 20Hz-20kHz±3dB |
| S/N Ratio | ≥103dB | ≥103dB | ≥103dB | ≥103dB |
| Max Output | 4V Max | 4V Max | 4V Max | 4V Max |
| Input Sensitivity | Mic-60dB | Mic-60dB | Mic-60dB | Mic-60dB |
| Line-40dB | Line-40dB | Line-40dB | Line-40dB | |
| Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | Aux-40dB Tape-40dB | |
| Parametric EQ | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz | Hi±15dB/12kHz |
| Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | Mid±15dB/2.5kHz | |
| Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | Low±15dB/80Hz | |
| Phantom Power | +48V | +48V | +48V | +48V |
| Effector | 16Bit DSP/26 Bit DSP | 16Bit DSP/26 Bit DSP | 16Bit DSP/26 Bit DSP | 16Bit DSP/26 Bit DSP |
| Power Supply | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz | AC 220V 50Hz |
