| Code: | PY3000 PY5000 PY6000 PY9000 |  |

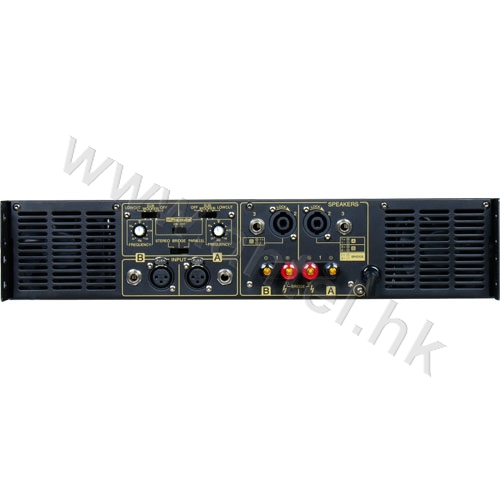

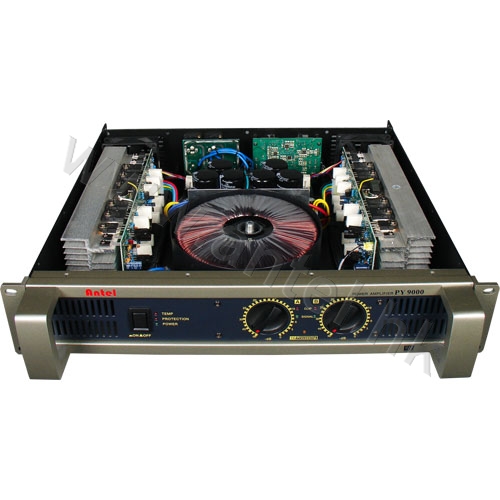

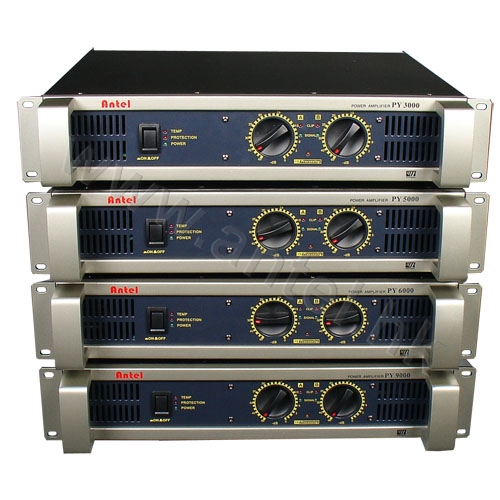

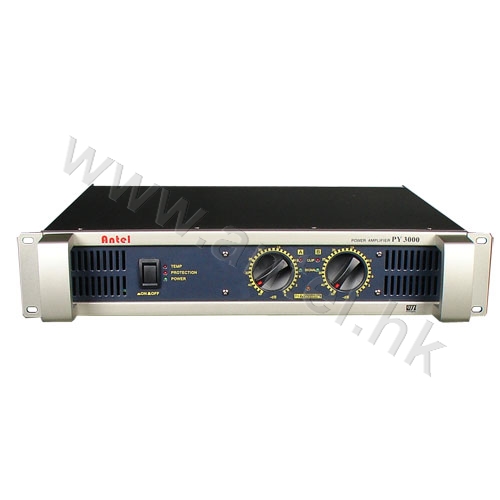

| Name: | professional amplifier PY series |
 |
Features:
● Reliable & economic amplifier with Toshiba transistor, class H circuit
● 2U chassis, 250W~700W power output
● Over heat, over load, anti-shock and DC output protection
● Limiter protects speaker effectively
● Soft starting turn on delaying and turn off soundless
● Speed-adjustable fans provide highly efficient cooling with lower noise
Specifications:
| Model | PY3000 | PY5000 | PY6000 | PY9000 | |
| Power output (W) 1KHz,0.5%THD+N |
Stereo 8Ω | 250W | 350W | 500W | 700W |
| Stereo 4Ω | 310W | 450W | 700W | 960W | |
| Bridged Mono 8Ω | 750W | 1100W | 1400W | 1900W | |
| Frequency response(1W@8Ω) | 20Hz-20kHz +0.5/-0.5dB | ||||
| THD+N(Continuous power, 8Ω/1kHz) | ≤0.03% | ||||
| S/N rate (20Hz-20kHz full load) | ≥101dB | ||||
| Slew rate | 20V/us | ||||
| Damping factor | ≥400:1 | ||||
| Cross talk | ≥70dB | ||||
| Input impedance | 20KΩ(Balance) /10KΩ(Unbalance) | ||||
| Input sensitivity | 0.755V | ||||
| CMRR | ≥58dB | ||||
| Voltage gain(@1.44V/1V/0.775V) | 32X/47X/60X | 39X/56X/72X | 46X/65X/83X | 83X/77X/99X | |
| Input compression ratio | 18:1 | ||||
| Dimension(WxDxH) | 483(19")mmx500mmx89(2U)mm | ||||
| Weight | 15kg | 16.5kg | 18.5kg | 19.5kg | |
