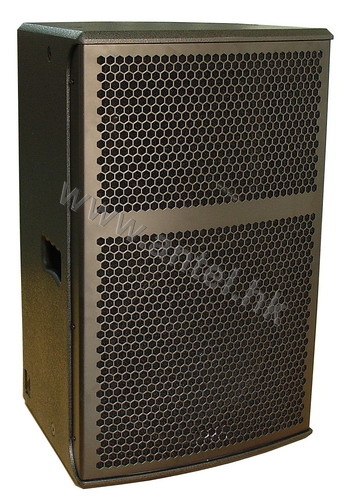

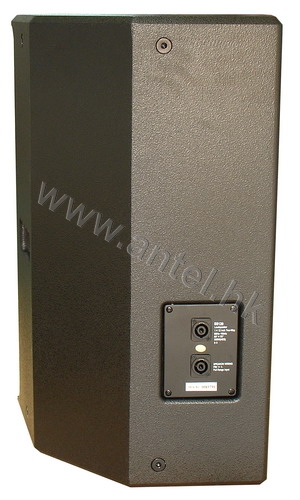

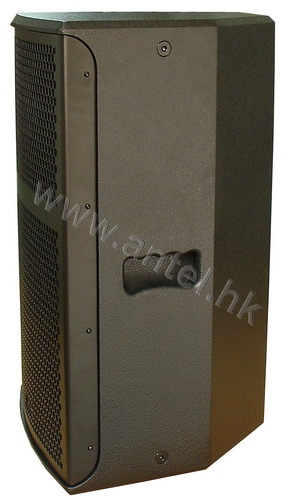

| SS120 |
|
| 1*12" Two-Way Full Range Speaker |
| |
|
|
| Applications |
|
| ★ |
Main speaker for the convention hall |
| ★ |
Multi-purpose hall |
|
| ★ |
Main speaker and aux speakers for nightclubs or discos |
| ★ |
Auditorium,theatre,church |
|
| ★ |
Live sound reinforcement |
|
| |
|
|
| Specifications |
|
| |
Frequency response |
65Hz-16KHz (±4dB) |
| |
|
56Hz-18KHz (-10dB) |
| |
Sensitivity (1W/1m) |
94dB (63Hz - 16KHz) |
| |
Nominal impedance |
8Ω |
| |
Power rated (AES) |
300W |
| |
Dispersion (HxV) |
80°*50° |
| |
Crossover |
2.7KHz |
| |
HF |
1'' exit compression driver,44mm voice coil |
| |
LF |
12"/65mm voice coil |
| |
SPL |
119dB continuous,125dB peak |
| |
Connector |
2 SPEAKON NL4MP 1+1- |
| |
Fittings |
10*M10, 1*Pole mount socket |
| |
Dimension (w*D*H) |
406*364*626mm |
| |
Weight |
23kg |
